Installing Headrest Cover

Information

Always replace fastening clamps.

Information

Make sure not to scratch any visible areas of the seat backrest when removing and installing the fastening clamps.

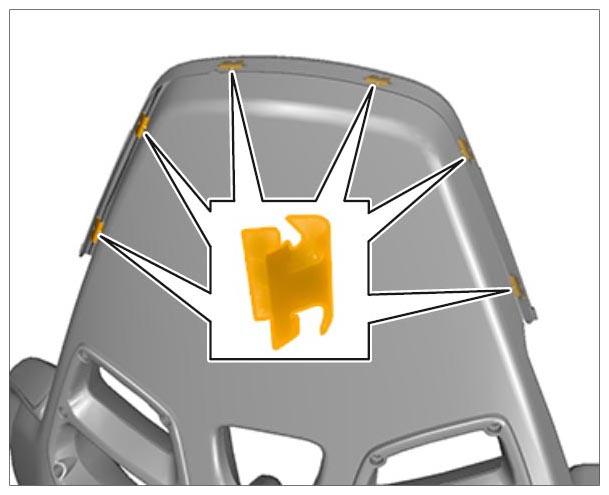

1. Replace fastening clamps for headrest cover.
   Fig 1: Replacing Fastening Clamps

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Install cover.

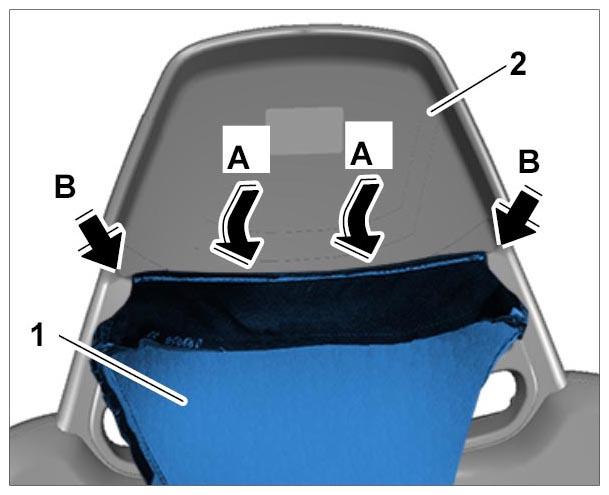

   1. 2.1. Engage cover -1-  in the seat backrest -2-  (-arrows A-  ).

      Make sure that the gap is the same at the sides -arrows B-  .

      Fig 2: Attaching Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

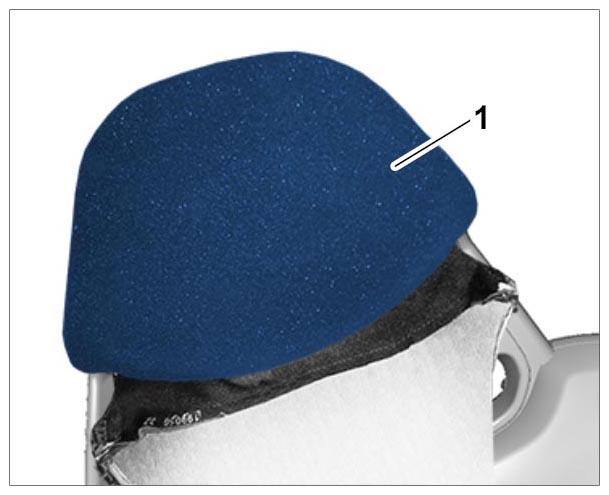

3. Position padding -1-  in the seat shell.
   Fig 3: Installing Padding

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

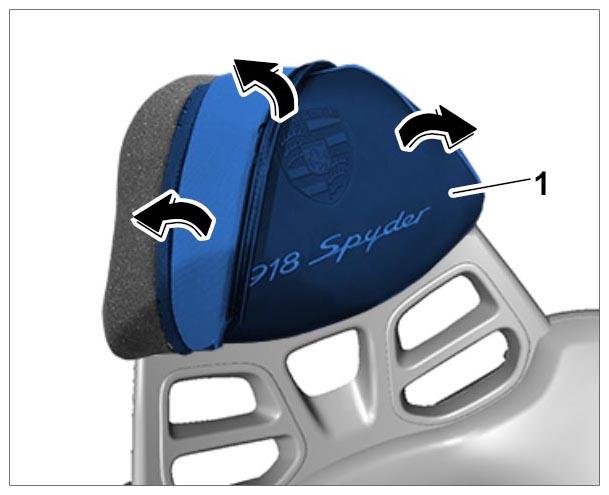

4. Fold cover -1-  over the seat shell -arrows-  .
   Fig 4: Folding Cover Over

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

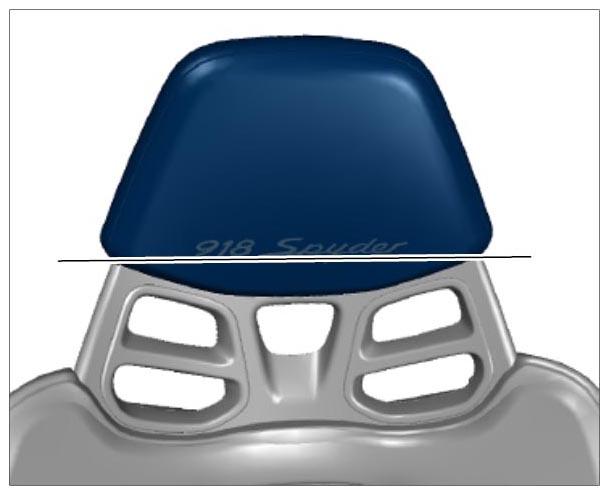

5. Align cover.

   The logo must be aligned parallel to the openings on the belt strap guide.

   Fig 5: Aligning Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

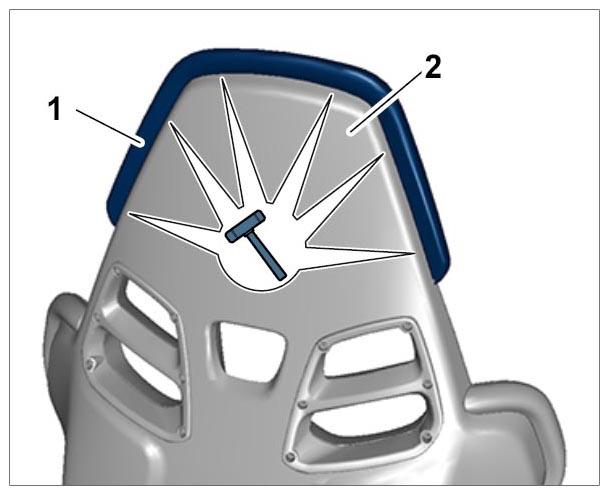

6. Press joint on cover -1-  into the seat shell -2-  and secure it by tapping gently (with a plastic hammer).
   Fig 6: Securing Cover Into Seat Shell

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Remove adhesive tape.
