Installing Seat Cushion (Front Part)

  1. Position seat cushion -1-  on the seat shell -3-  (-arrow-  ) and straighten it. Press on Velcro fasteners -2-  .

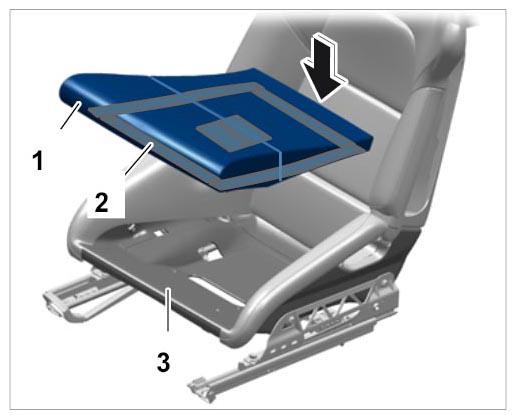

    Fig 1: Installing Seat Cushion (Front Part)
    G10025783Courtesy of PORSCHE CARS NORTH AMERICA, INC.
