WM 741019 Removing And Installing Padding With Seat Cover (Bucket Seat - 918 SPYDER) (CAYMAN "Black/Style Edition", BOXSTER "Black/Style Edition", BOXSTER SPYDER, CAYMAN Gt4)
>>
Removing Padding With Seat Cover
Removing Padding With Seat Cover

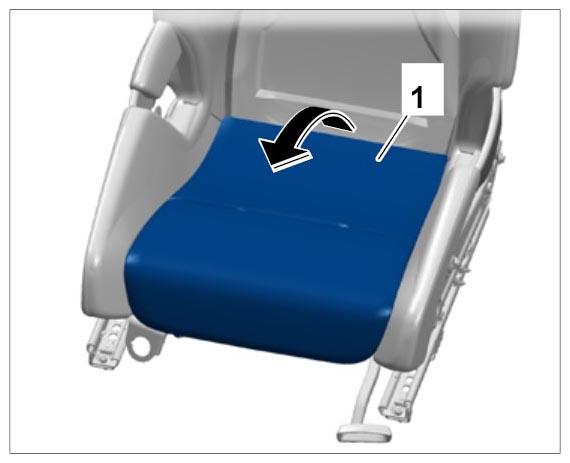

Pull off padding
-1-
(
-arrow-
).
Fig 1: Removing Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

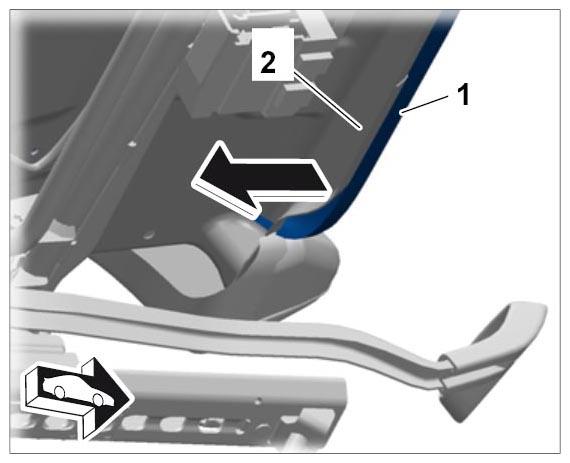

Pull piping profile
-1-
out of the seat shell
-2-
(
-arrow-
).
Fig 2: Disengaging Padding Out Of Seat Shell
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
