Installing Side Cushion

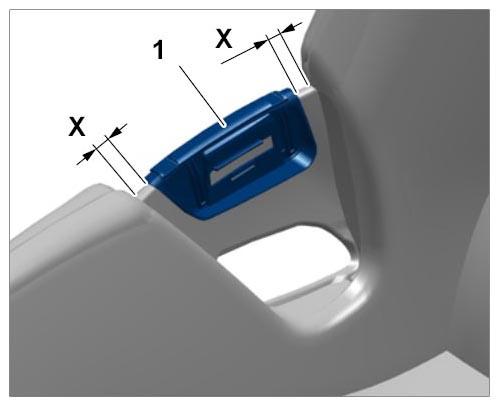

Position the template -1- on the seat shell.
Make sure that it is the same distance from the side bolsters.

Fig 1: Positioning Template
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

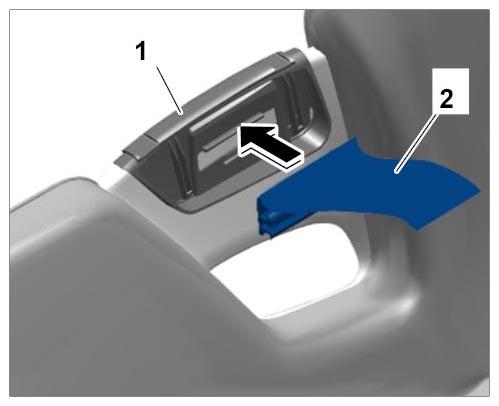

Position retaining clip with retaining strap -2- through the template -1- on the seat shell -arrow- .

Fig 2: Securing Retaining Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

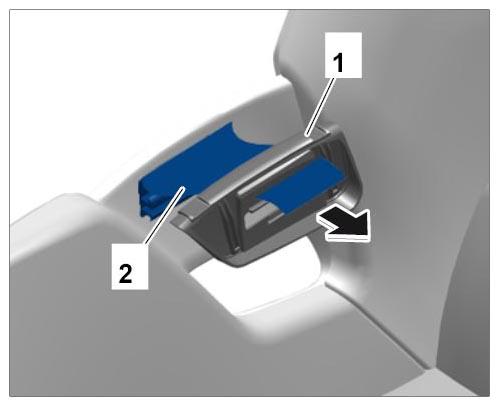

Remove template -1- from the seat shell -arrow- .

Fig 3: Removing Template
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

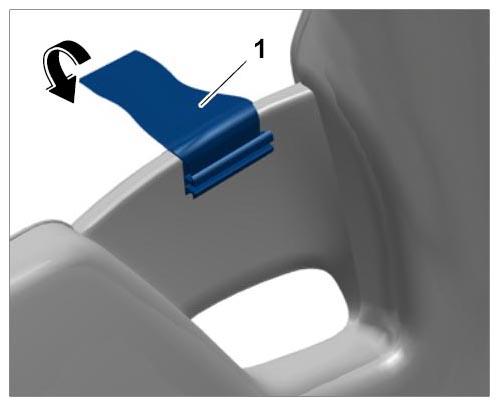

Guide retaining strap -1- around the seat shell -arrow- .

Fig 4: Guiding Retaining Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

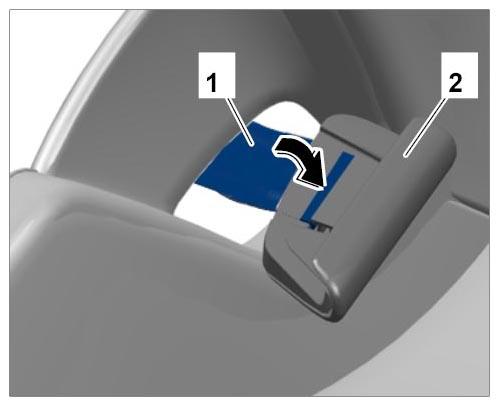

Engage retaining strap -1- in the cushion -2- (-arrow- ).

Fig 5: Engaging Retaining Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install retaining strap.

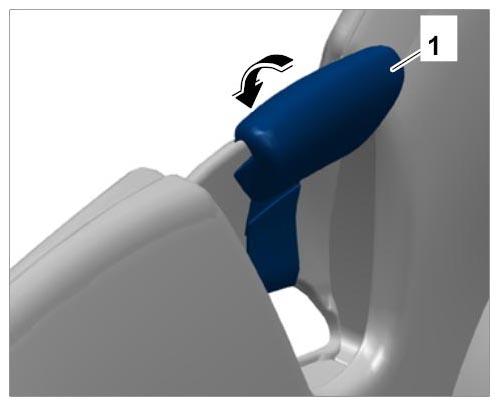

1. 6.1. Install cushion -1- over the seat shell -arrow- and clip it into the retaining clip.

  Fig 6: Installing Cushion
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
