Installing Upper Part Of Lock

  1. Install upper part of lock.
    1. 1.1. Position upper part of lock -2-  on the backrest shell -4-  (-arrow A-  ).
    2. 1.2. Fit fastening nuts -3-  and tighten them so that the upper part of the lock -2-  can still be moved.
    3. 1.3. Adjust upper part of lock. → Adjusting Lock For Backrest Adjustment  .
    4. 1.4. Engage the tension spring -1-  at the upper part of the lock -2-  (-arrow B-  ).

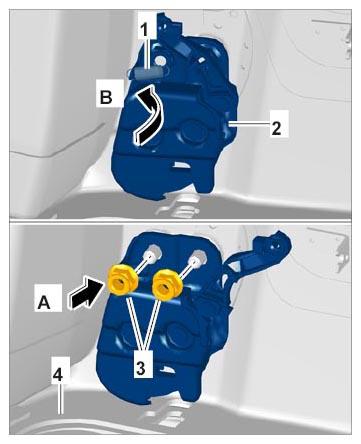

      5. Fig 1: Installing Upper Part Of Lock
      G10027910Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Engage bowden cable at the upper part of the lock.
    1. 2.1. Guide bowden cable -1-  into the locking clip -2-  on the actuating lever -3-  (-arrow A-  ).
    2. 2.2. Swivel the bowden cable -1-  90° and engage it in the locking clip -2-  (-arrow B-  ).

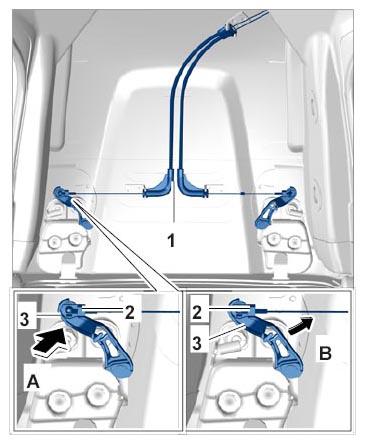

      3. Fig 2: Installing Bowden Cable
      G10027911Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Check backrest release by pulling the loop. Adjust it if necessary.
  4. Check bonding points -2-  on the foam part -1-  and apply new adhesive if necessary.

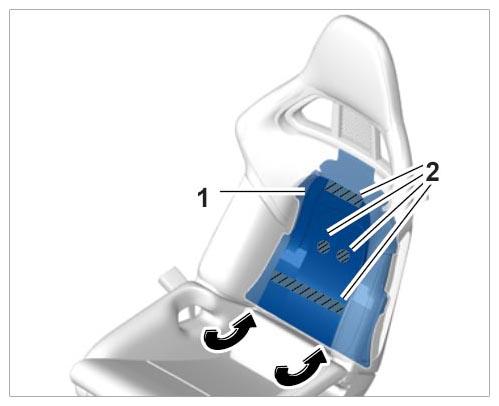

    Fig 3: Installing Foam Part Of Backrest
    G10027912Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Position foam part -1-  (-arrows-  ) and press it on at the bonding points -2-  .
  6. Align cover -1-  with the side bolsters.

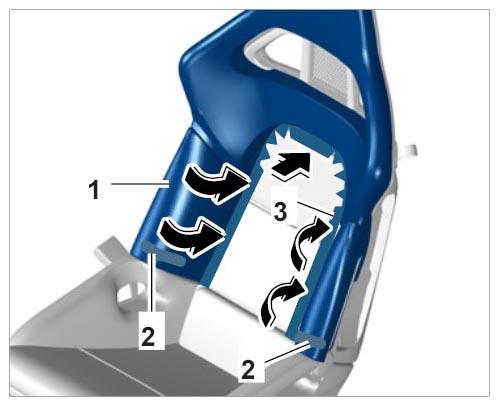

    Fig 4: Securing Velcro Fasteners
    G10027913Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Make sure the Velcro fasteners join cleanly.

  7. Press on Velcro fasteners -2-  and -3-  (-arrows-  ).
