Removing Tailgate Trim Panel

  1. Unclip actuator for rear lid release cable -2-  from the tailgate trim panel -1-  .
    1. 1.1. Fold over actuator for rear lid release cable -2-  (arrow).
    2. 1.2. Lever rear lid release cable -3-  out of the actuator -2-  .
      Fig 1: Identifying Rear Lid Release Cable
      G10027689Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Detach tailgate trim panel -1-  at the left side -arrow A-  .
    1. 2.1. Disconnect rear lid release cable -3-  from the fastening points -arrows-  and suspend bowden cable at the side.
      Fig 2: Disconnecting Rear Lid Release Cable
      G10027690Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Detach tailgate trim panel -1-  at the right side -arrows A-  .
    1. 3.1. Detach tailgate trim panel -1-  (-arrows B-  ).
    2. 3.2. Remove tailgate trim panel.

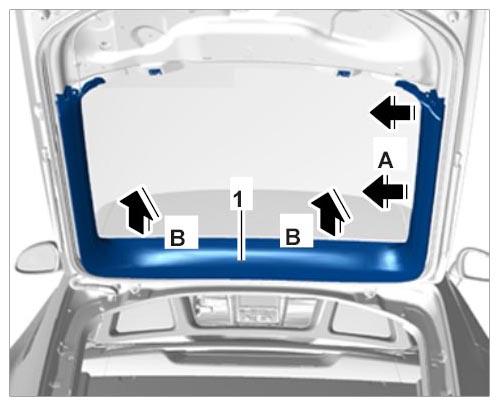

      Fig 3: Removing Tailgate Trim Panel
      G10027691Courtesy of PORSCHE CARS NORTH AMERICA, INC.
