Passenger's Airbag Unit
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Retaining bracket to retaining frame | M6 x 20 | Tightening torque | 13 Nm (9.5 ftlb.) | ||
| Retaining bracket and passenger's airbag unit to retaining frame | M6 x 30 | Tightening torque | 10 Nm (7.5 ftlb.) | ||
| Retaining bracket to dashboard | M5 x 20 | Tightening torque | 3 Nm (2 ftlb.) | ||
| Retaining bracket to passenger's airbag unit | M5 x 20 | Tightening torque | 3 Nm (2 ftlb.) |

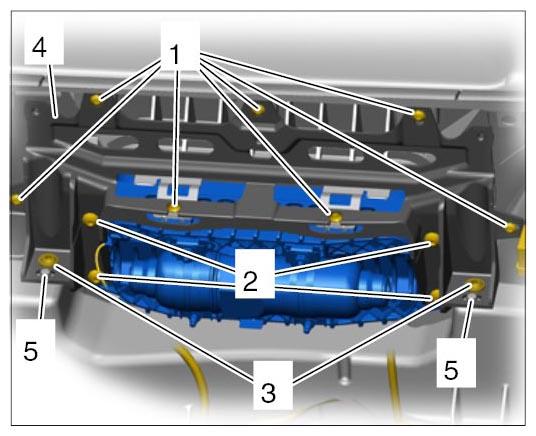

- Retaining bracket to dashboard and passenger's airbag unit
- Retaining bracket and passenger's airbag unit to retaining frame
- Retaining bracket to retaining frame
