6X Body - Equipment Outside - General -- (981) BOXSTER/CAYMAN
>>
WM 6X00IN Technical Values (CAYMAN, CAYMAN S, BOXSTER, BOXSTER S)
>>
Technical Values For Occupant Protection
>>
Engine Compartment Lid
Engine Compartment Lid
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

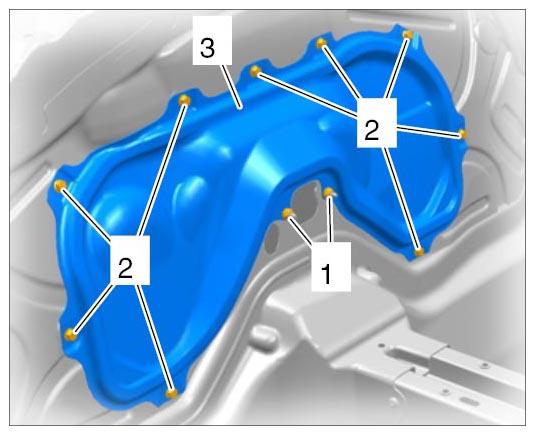

Fastening screws for rear wall cover
Tightening torque
9.7 Nm (7.5 ftlb.)
Removing rear wall cover
