Glazing, Window Control
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw for door window glass | With special tool | Tightening torque | 6 Nm | +/-0.9 Nm | |
|

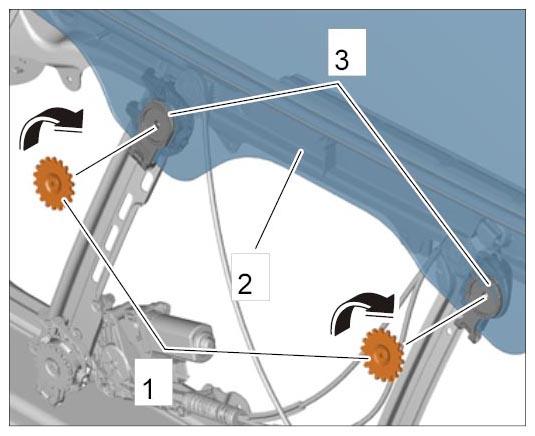

Securing door window glass |
|||||
| Fastening screw for door window glass | Directly at the screw | Tightening torque | 12 Nm | +/-1.8 Nm | |
|
Securing door window glass |
|||||
| Power regulator motor to window lifter | Tightening torque | 4.7 Nm | +/-0.5 Nm | ||
|

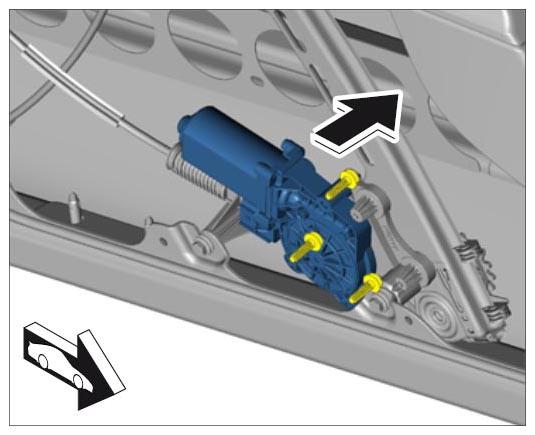

Removing power regulator motor |
|||||
| Fastening nut for window lifter | Tightening torque | 9.7 Nm | +/-0.9 Nm | ||
|

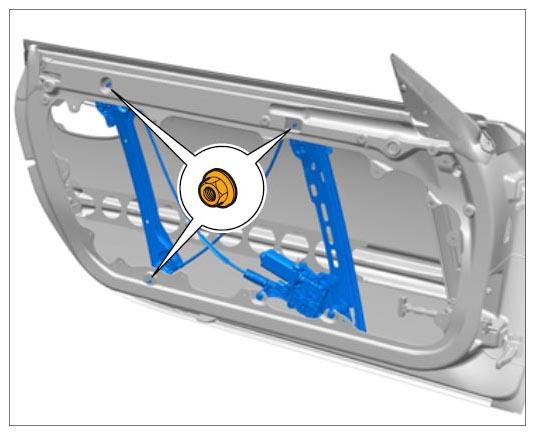

Screwing off fastening nuts |
|||||
