Gap Dimensions Of Rear Side Window
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Door window with respect to rear side window | Illustration 4 | Gap dimension | 7 mm | +/-0.8 mm | |
|

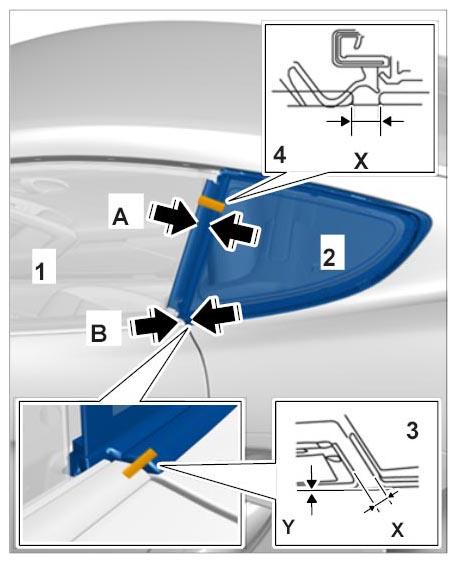

Gap/offset between door window and side window |
|||||
| Door shaft molding with respect to rear side window rubber | Illustration 3 | Gap dimension | 3.5 mm | +0.7 mm | -0.5 N |
|
Gap/offset between door window and side window |
|||||
