Underbody Panelling

Location	Description	Type	Basic value
Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 Nm (2 lb.ft)

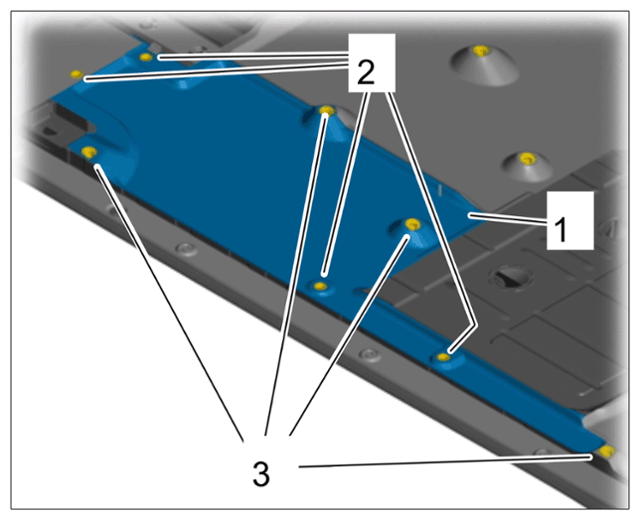

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing cover for front underbody
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 Nm (2 lb.ft)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing cover for front underbody
Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 Nm (2 lb.ft)

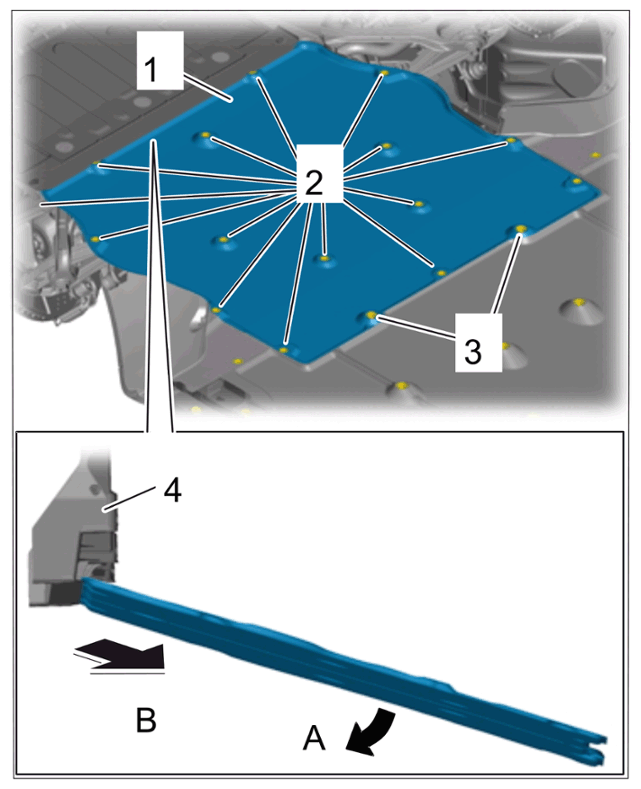

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing side cover
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 Nm (2 lb.ft)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing side cover
Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 Nm (2 lb.ft)

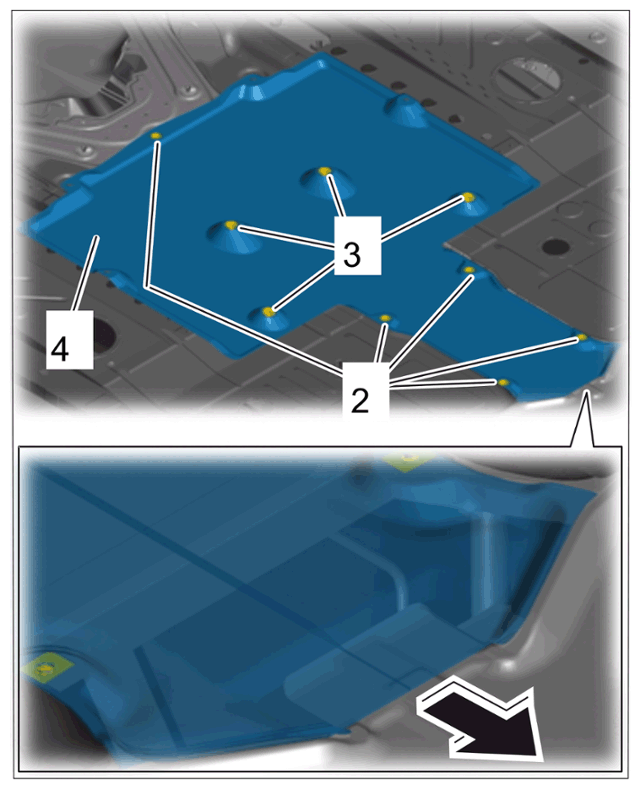

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing middle cover
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 Nm (2 lb.ft)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing middle cover
Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 Nm (2 lb.ft)

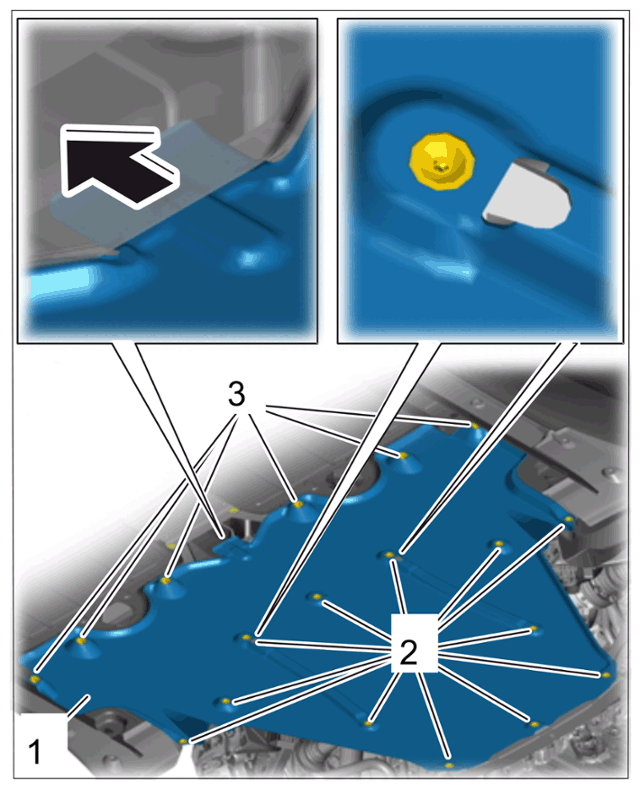

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear underbody panelling
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 Nm (2 lb.ft)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear underbody panelling

Technical values
