Removing Seat Cross Member

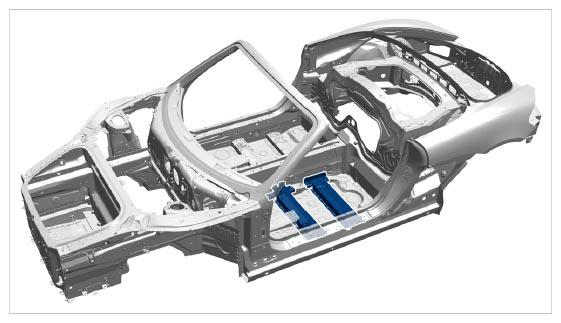

Fig 1: Seat Cross Member Component Location (Except Boxster GTS)

G10029247

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

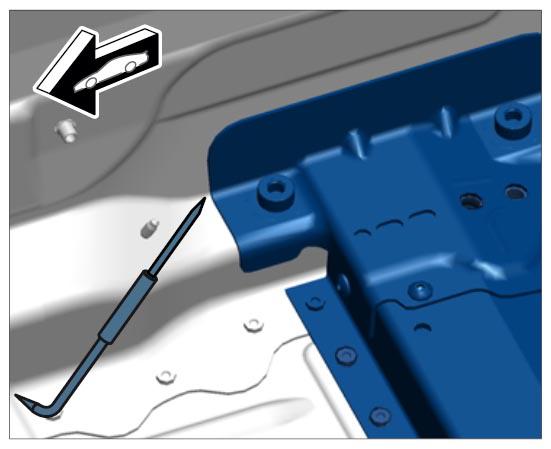

Mark seat cross member on the outside and inside of the original setup using a scriber.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

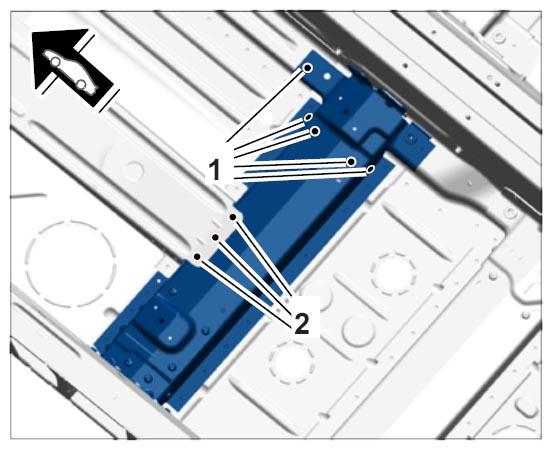

Undo the fastening screws -1;2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

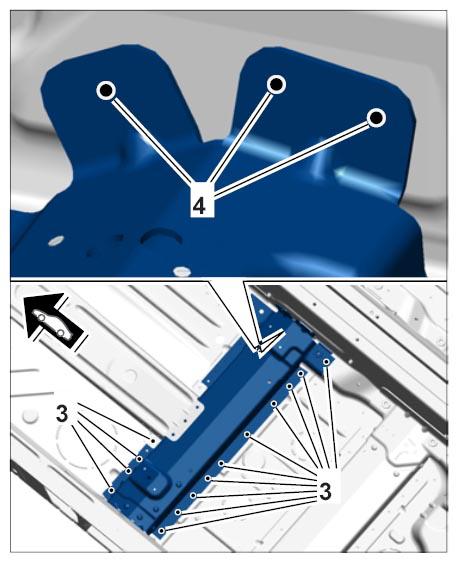

Drill through the punch rivets -3- and -4- using a twist drill Nr.201 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat the marked bonding surfaces of the seat cross member reinforcement.

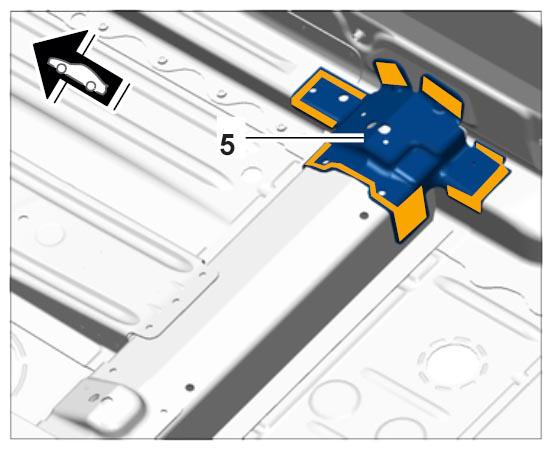

4.1. Remove the seat cross member reinforcement -5- .

G10029251

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

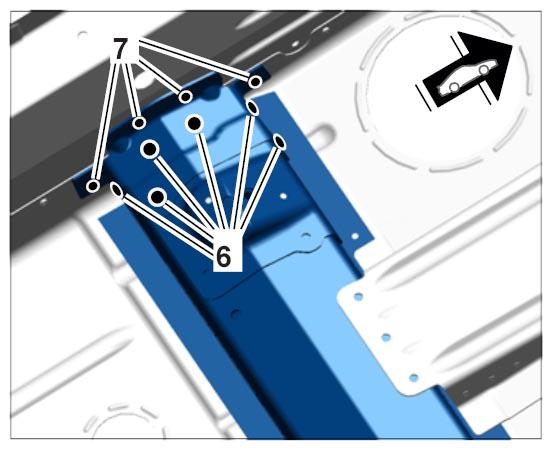

Undo the fastening screws -6- .

5.1. Drill through the punch rivets -7- using a twist drill Nr.201 .

G10029252

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

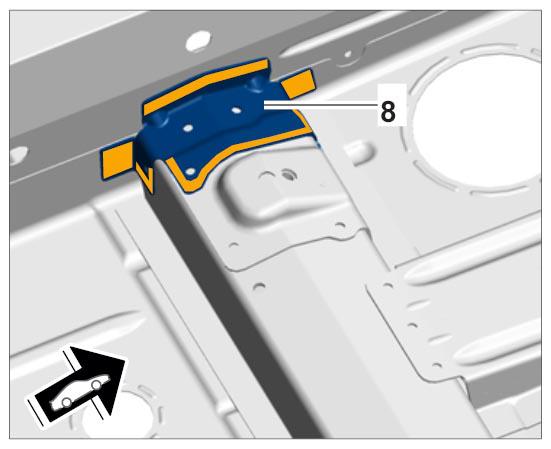

Heat the marked bonding surfaces of the seat cross member reinforcement.

6.1. Remove the seat cross member reinforcement -8- .

G10029253

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat the marked bonding surfaces of the longitudinal member plate.

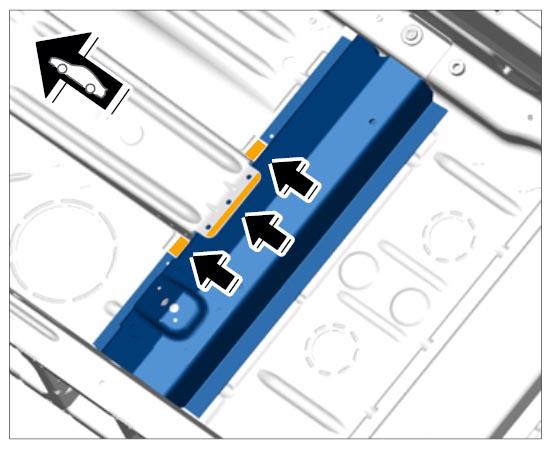

7.1. Make a small gap in area -→- .

G10029254

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

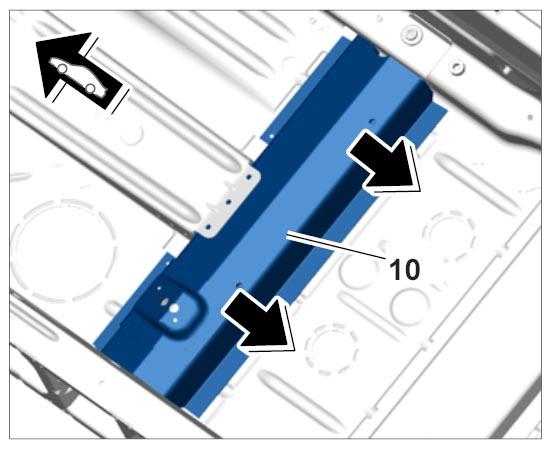

Remove the front seat cross member -10- in the direction of the →.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove the rear seat cross member.

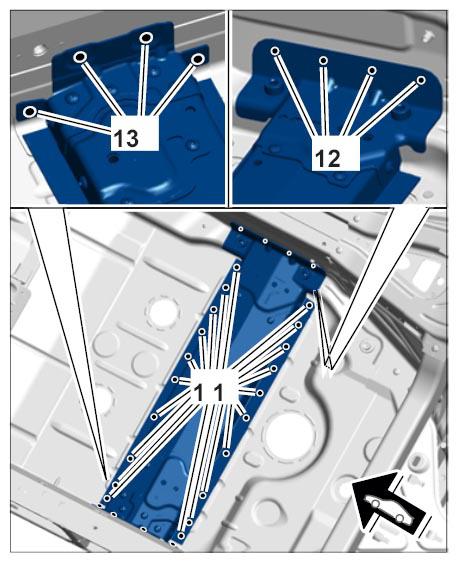

9.1. Drill through the punch rivets -11;12;13- using a twist drill Nr.201 .

G10029256

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

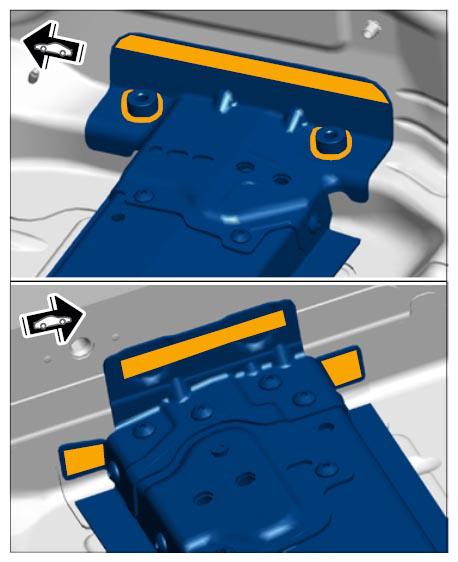

Heat the bonding surfaces.

10.1. Remove the rear seat cross member.
