Preparing Seat Cross Members

Information

• Position the seat cross members with the seat installed  .

1. Install the seat cross members and align with the seat.
   1. 1.1. Secure the seat cross members in the installation position and remove the seat.

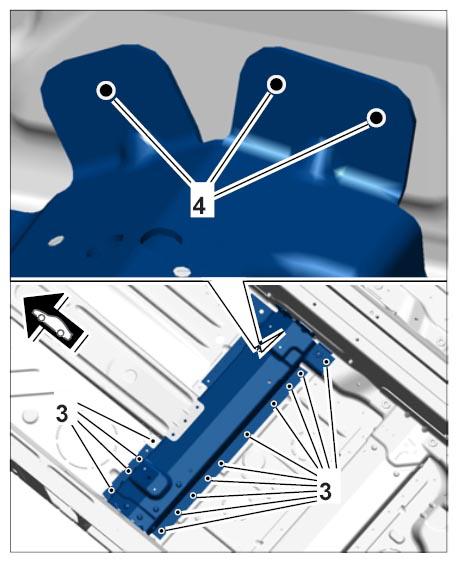

   2. 1.2. Drill rivet holes in the marked areas -3;4-  using a → Diameter: 6.6 mm  drill.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

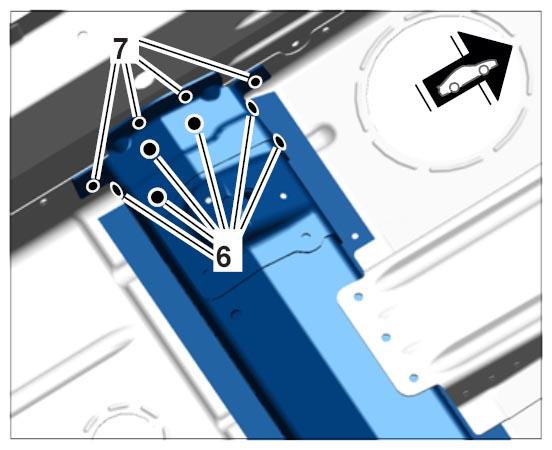

2. Drill rivet holes in the marked area -7-  using a → Diameter: 6.6 mm  drill.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

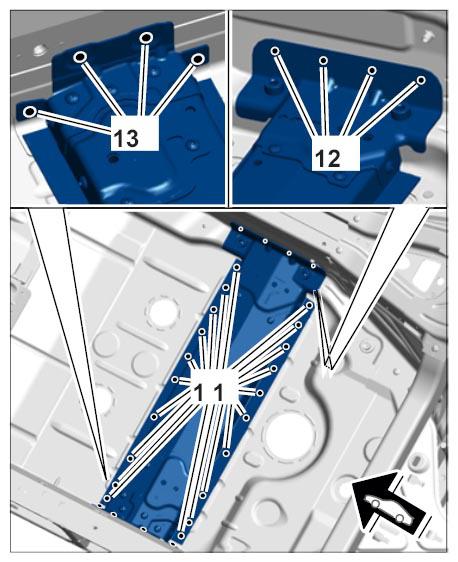

3. Drill rivet holes in the marked areas -11;12;13-  using a → Diameter: 6.6 mm  drill.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

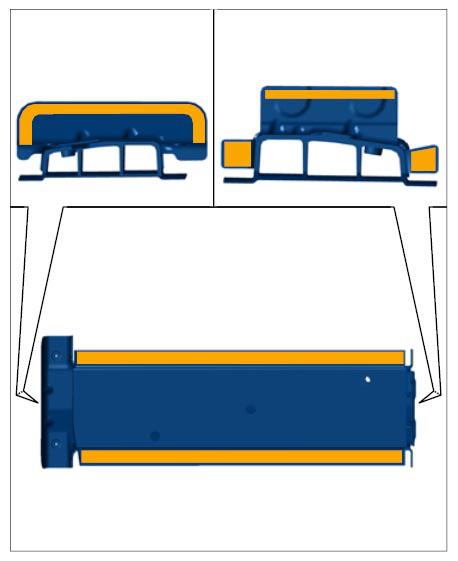

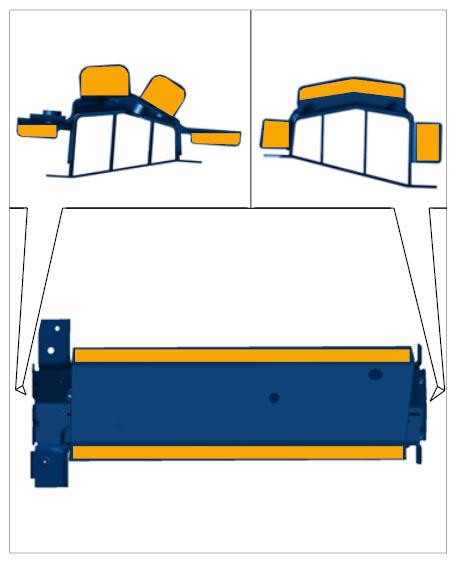

4. Prepare the connection areas of the seat cross members for bonding and riveting.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
