Removing Outer Side Member (Front Section)

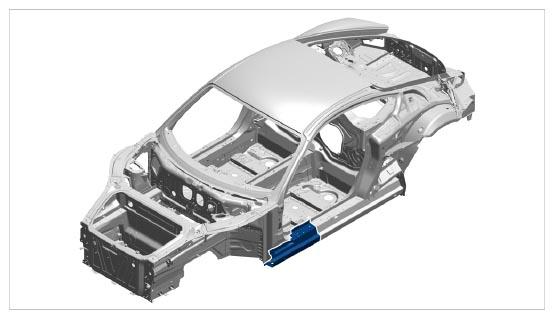

Fig 1: Outer Side Member Component Location (Front Section) (Cayman, Cayman S, Cayman GTS, Cayman "Black/Style Edition", Boxster "Black/Style Edition", Cayman GT4)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information

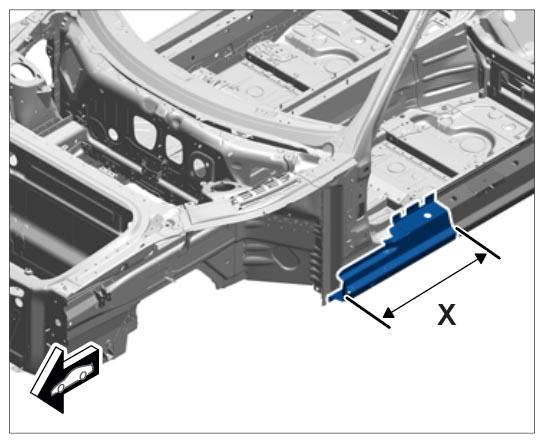

Mark cuts X  in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

1. Mark and make cuts. → Distance: 560 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

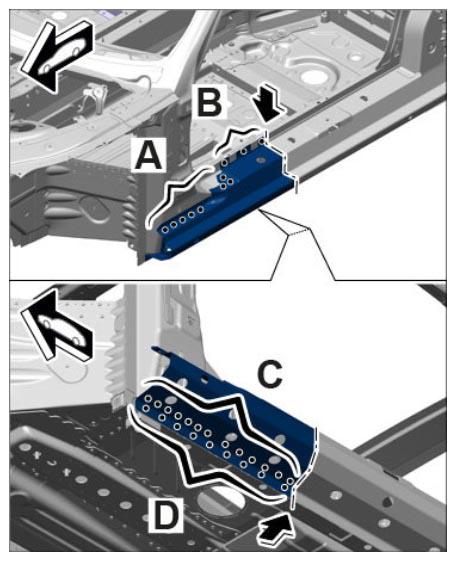

   Drill out the connection point on one side only. Do not damage the plate underneath.

2. Drill out spotwelds using spotweld drill  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Heat the bonding surfaces.
   1. 3.1. Remove outer side member (front section).
