Removing Outer Side Member

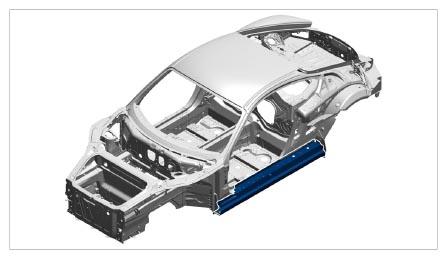

Fig 1: Outer Side Member Component Location (Cayman, Cayman S, Cayman GTS, Cayman "Black/Style Edition", Boxster "Black/Style Edition", Cayman GT4)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

1. Drill out spotwelds using spotweld drill  .

   Information

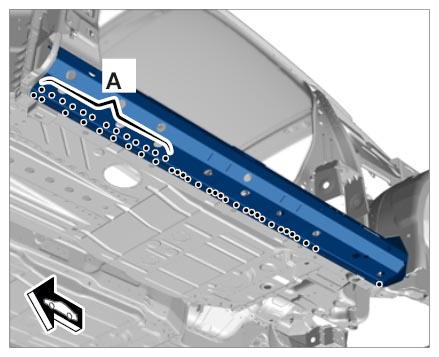

   Drill out spotwelds A  through two plate thicknesses.

   1. 1.1. Drill out spotwelds in area -A-  using spotweld drill  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

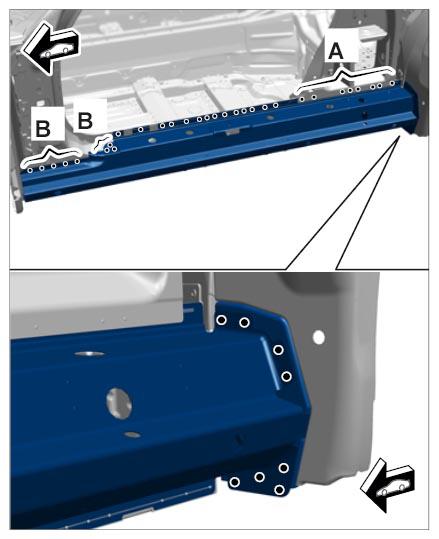

   Drill out the connection point on one side only. Do not damage the plate underneath.

2. Drill out spotwelds using spotweld drill  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

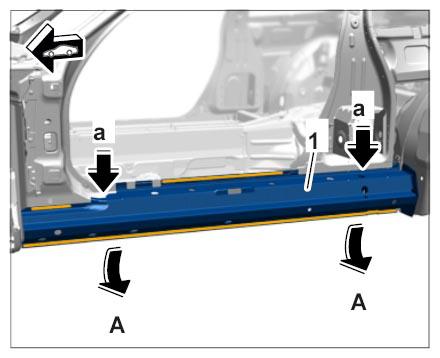

3. Heat the marked bonding surfaces.
   1. 3.1. Lift up side member -1-  in the lower area slightly → A-  .
   2. 3.2. Press side member -1-  down in the upper area → a-  and remove it.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
