Preparing Outer Side Member For Installation

  1. Fit in outer side member and secure it to the body. Check gap dimensions. → 5X00IN41 GAP DIMENSIONS

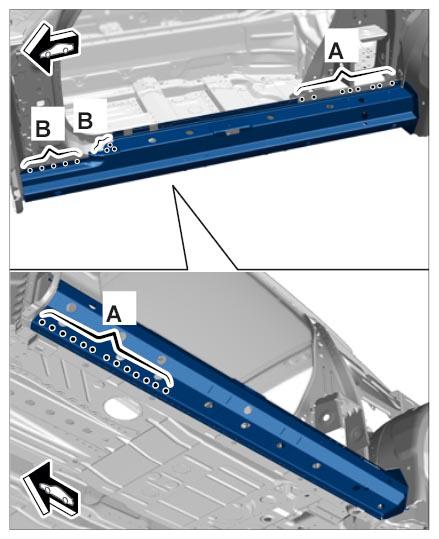

    1. 1.1. Drill holes for rivets in area -A;B-  .

      → Diameter: 6.6 mm

      G10029203Courtesy of PORSCHE CARS NORTH AMERICA, INC.

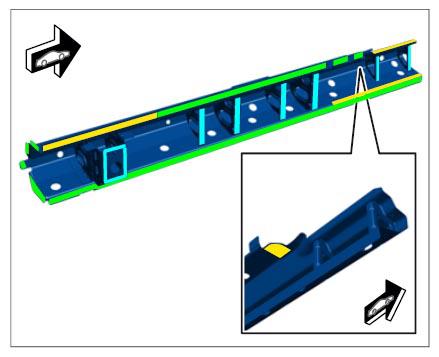

  2. Prepare the marked connection areas for bonding and welding.
    G10029204Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Green Bonding + resistance spot-welding
    Yellow Bonding + riveting
    Blue Bonding
