Removing B-Pillar Reinforcement

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

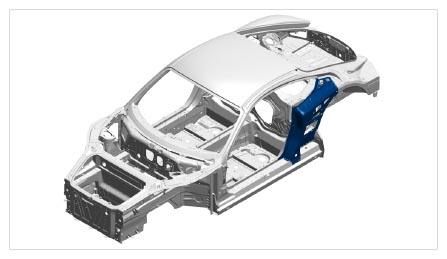

Fig 1: B-Pillar Reinforcement Component Location (Cayman, Cayman S, Cayman GTS, Cayman "Black/Style Edition", Boxster "Black/Style Edition", Cayman GT4)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

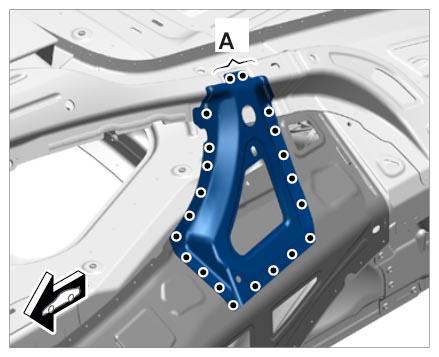

1. Remove connecting piece of side member.
   1. 1.1. Drill out spotwelds. Spotweld drill bit Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

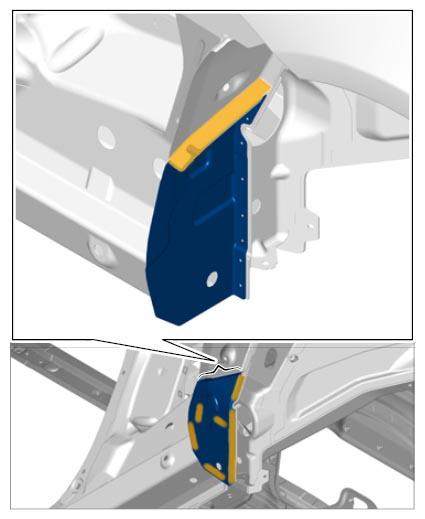

2. Heat bonding areas marked in yellow. Hot-air blower, Leister-Electron/V.A.G. 1416 WE 1119
   1. 2.1. Remove connecting piece.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Remove supporting plate for B-pillar reinforcement.
   1. 3.1. Drill out spotwelds. Spotweld drill bit Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

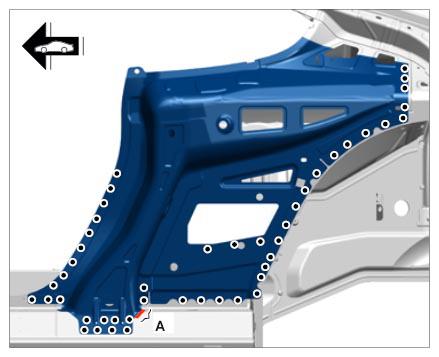

4. Remove B-pillar reinforcement.
   1. 4.1. Drill out spotwelds. Spotweld drill bit Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139
   2. 4.2. Remove welded seams in area -A-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

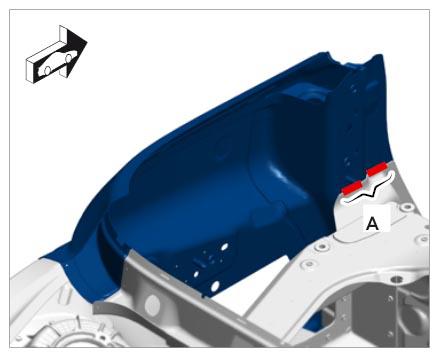

5. Remove welded seams in area -A-  from the inside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

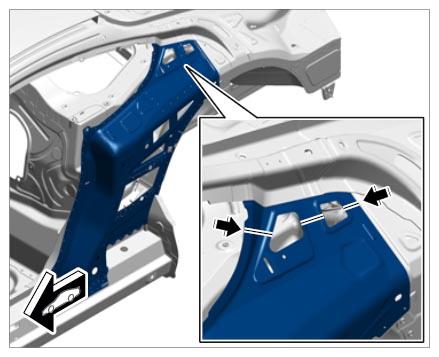

6. Make cut.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

7. Remove B-pillar reinforcement.
