Preparing Connection Areas Of The Body

  1. Straighten sealing surface and connection areas of the body.
  2. De-burr connection areas and prepare for welding.

    Information

    • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
    • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
    • Do not begin bonding work until all materials and tools necessary for later repair work are available  .

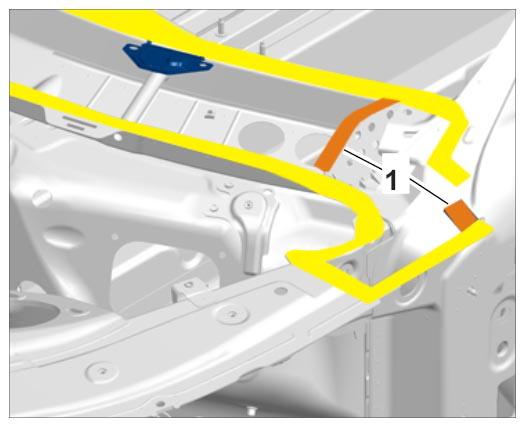

  3. Prepare marked areas for welding and bonding.
    G10029122Courtesy of PORSCHE CARS NORTH AMERICA, INC.
