Removing Rear Cross Member

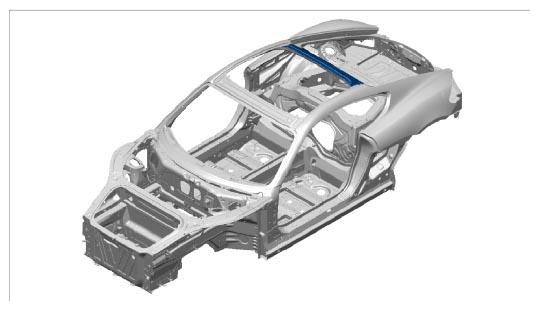

Fig 1: Rear Cross Member Component Location (Cayman, Cayman S, Cayman GTS, Cayman "Black/Style Edition", Boxster "Black/Style Edition", Cayman GT4)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

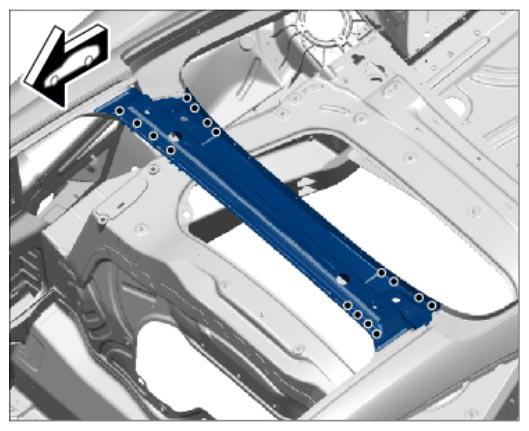

1. Drill through spotwelds using a spotweld drill  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

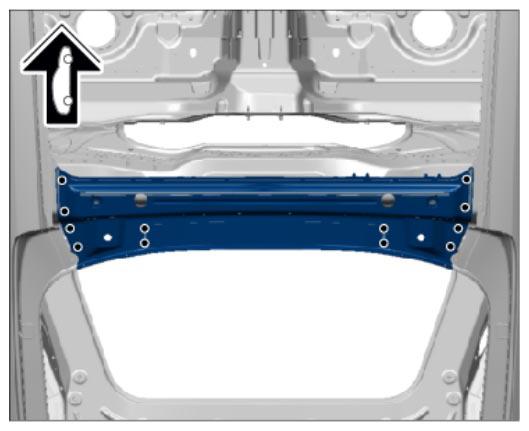

2. Drill through spotwelds using a spotweld drill  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

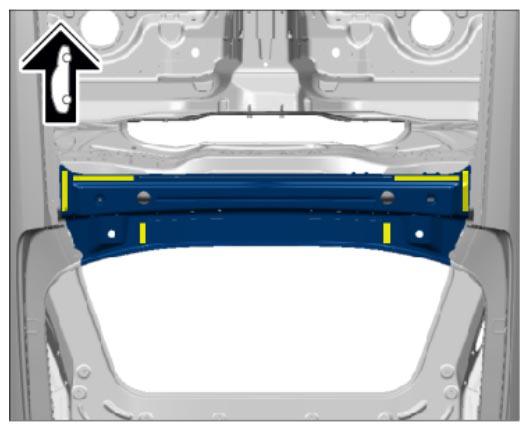

3. Heat the marked bonding areas.
   1. 3.1. Remove upper part of rear cross member.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. Remove lower part of rear cross member.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

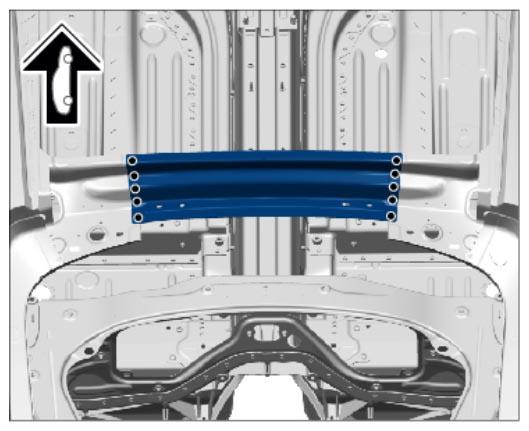

   1. 4.1. Drill through spotwelds using a spotweld drill  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

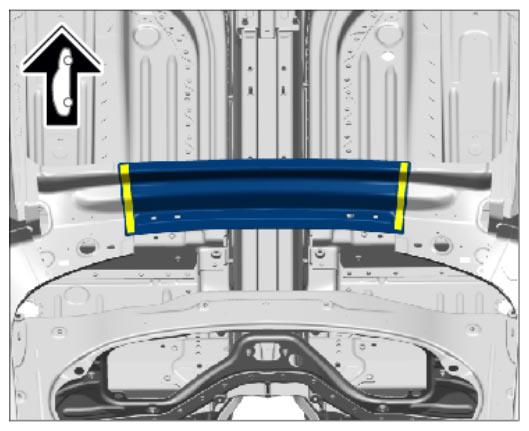

5. Heat the marked bonding surfaces.
   1. 5.1. Remove lower part of rear cross member.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
