Preparing Rear Cross Member For Installation
- Fit in new part and secure it to the body. Check gap dimensions. → 5X00IN41 GAP DIMENSIONS
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive .
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed .
- Do not begin bonding work until all materials and tools necessary for later repair work are available .

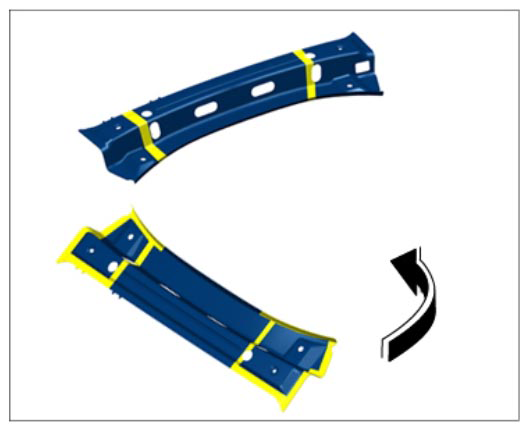

- Prepare upper and lower part of rear cross member for bonding and welding.
Yellow Bonding + resistance spot-welding
