Removing Upper Front Roof Frame

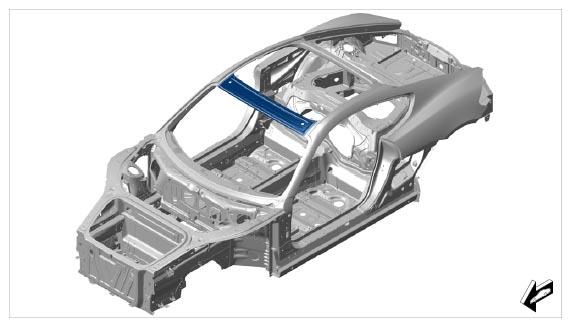

Fig 1: Upper Front Roof Frame Component Location (Cayman, Cayman S, Cayman GTS, Cayman "Black/Style Edition", Boxster "Black/Style Edition", Cayman GT4)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

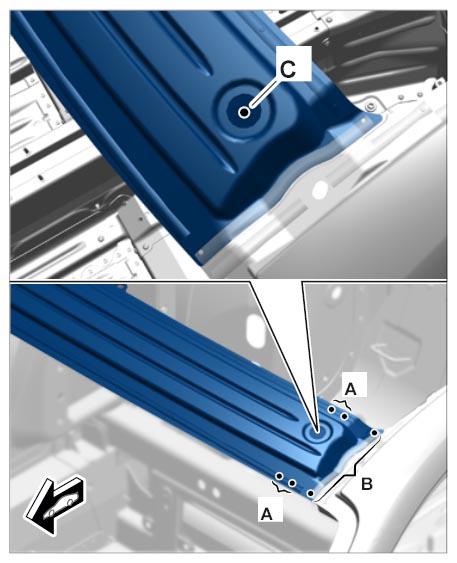

Drill out spotwelds A  through two plate thicknesses.

1. Drill through spotwelds in area -A-  using a spotweld drill  .

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

   1. 1.1. Drill out spotwelds in area -B;C-  using a spotweld drill  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

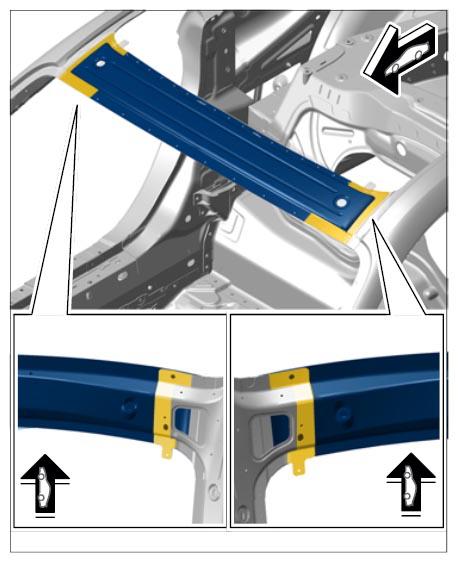

2. Heat bonding surfaces on top and bottom half of the roof frame.
   1. 2.1. Remove roof frame completely.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
