Preparing Upper Front Roof Frame For Installation

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
• Do not begin bonding work until all materials and tools necessary for later repair work are available  .

1. Fit in upper front roof frame and secure it to the body. Check gap dimensions. → 5X00IN41 GAP DIMENSIONS

   Information

   • Some of the repair illustrations show only one side of the vehicle  .
   • Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

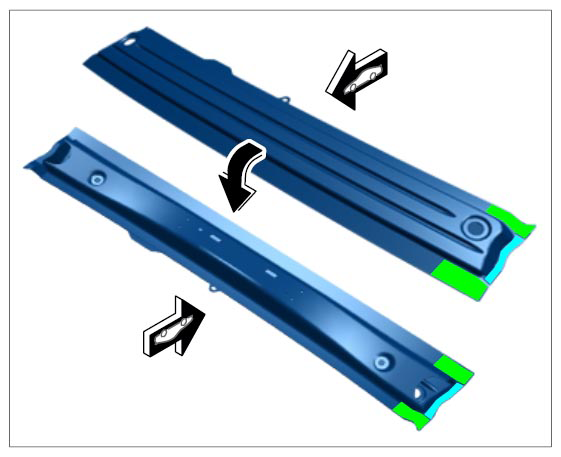

   1. 1.1. Prepare the marked connection areas for bonding and welding.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Blue	Bonding
   Green	Bonding + resistance spot-welding
