Removing Upper Front Roof Frame

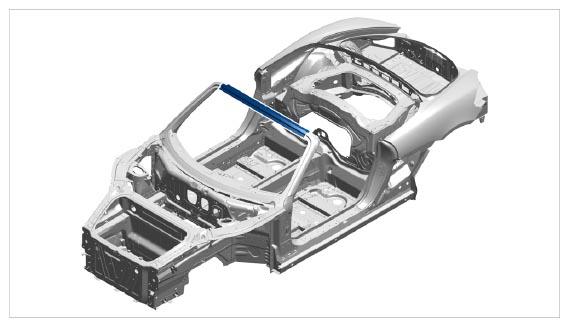

Fig 1: Upper Front Roof Frame Component Location (Cayman "Black/Style Edition", Boxster, Boxster S, Boxster "Black/Style Edition", Boxster Spyder, Cayman GT4)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

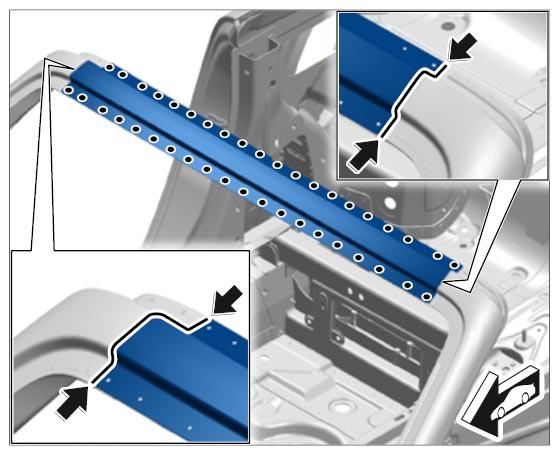

1. Drill through spotwelds using a spotweld drill  .
   1. 1.1. Grind down welded seams.
   2. 1.2. Remove upper front roof frame.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

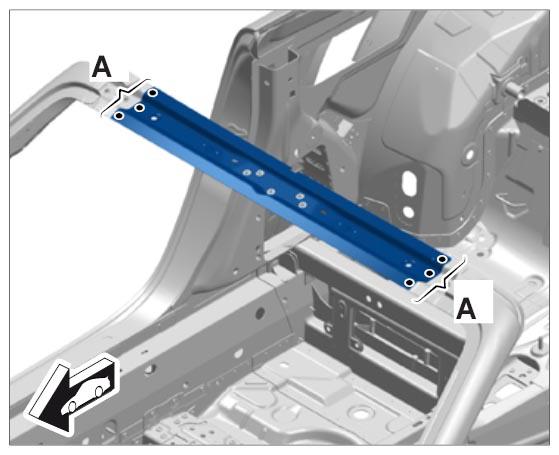

2. Drill through spotwelds -A-  using a spotweld drill  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

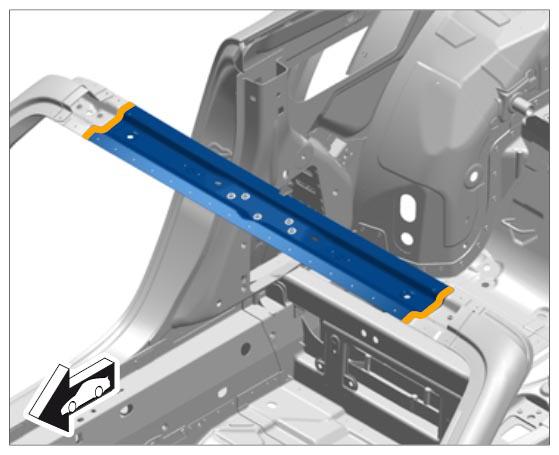

3. Heat the marked bonding surfaces.
   1. 3.1. Remove roof frame lower part.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
