Installing Upper Front Roof Frame

Install upper front roof frame and check that it fits perfectly. Check gap dimensions. → 5X00IN41 GAP DIMENSIONS .
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive .
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed .
- Do not begin bonding work until all materials and tools necessary for later repair work are available .

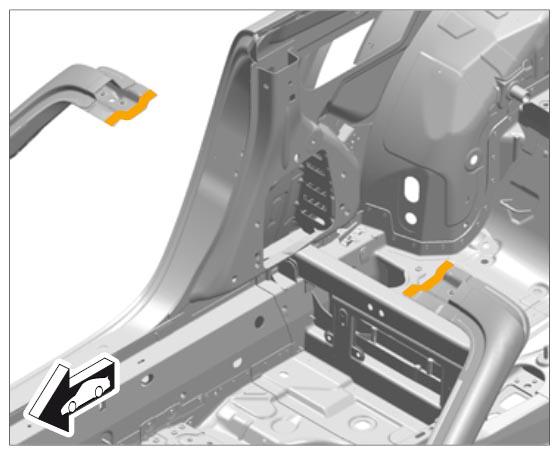

Apply adhesive. → Application depth: 3.0 mm
Working with body structural adhesive → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

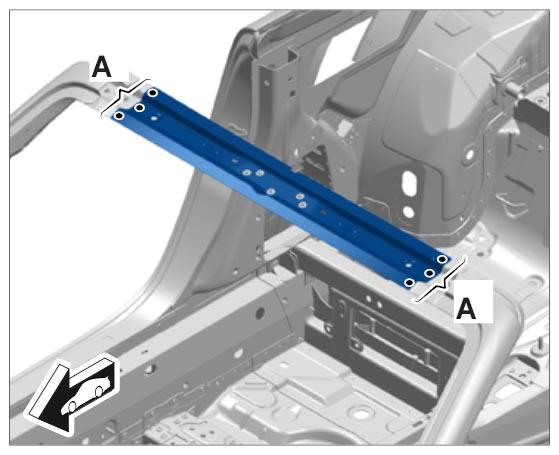

Resistance spot-weld area -A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

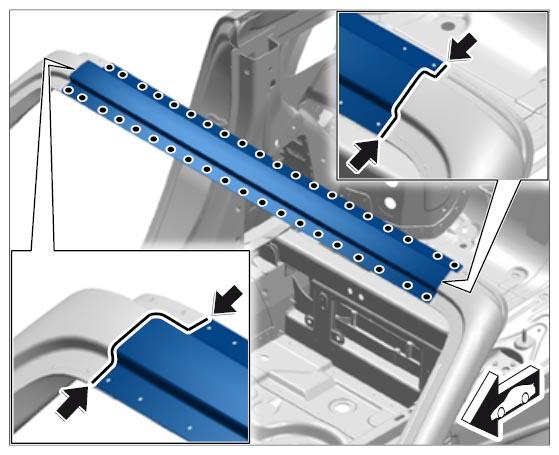

Resistance spot-weld the roof frame upper part.

4.1. MAG-weld area.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
