Removing Roof Pillar (Reinforcement)

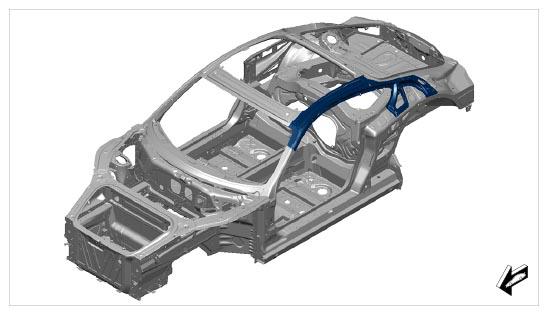

Fig 1: Roof Pillar Component Location (Reinforcement) (Cayman, Cayman S, Cayman GTS, Cayman "Black/Style Edition", Boxster "Black/Style Edition", Cayman GT4)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

1. Drill out spotwelds using spotweld drill  .

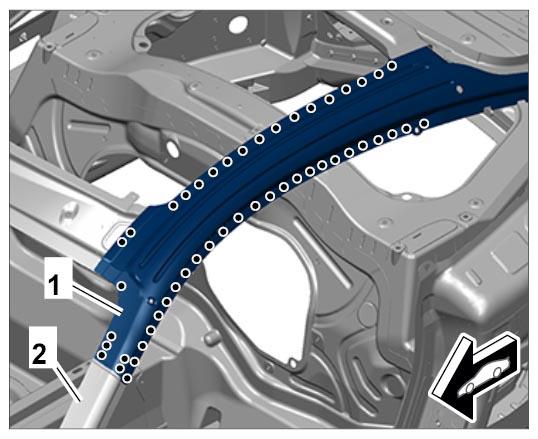

   1. 1.1. Open original joint between roof pillar (reinforcement) -1-  and A-pillar reinforcement -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

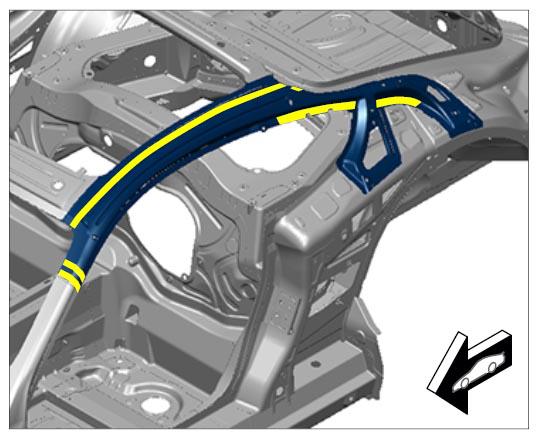

2. Heat the marked bonding areas.
   1. 2.1. Remove roof pillar (reinforcement).

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
