Removing Roof Pillar

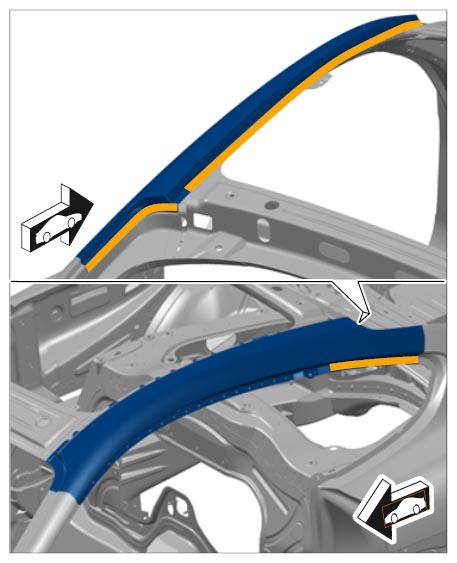

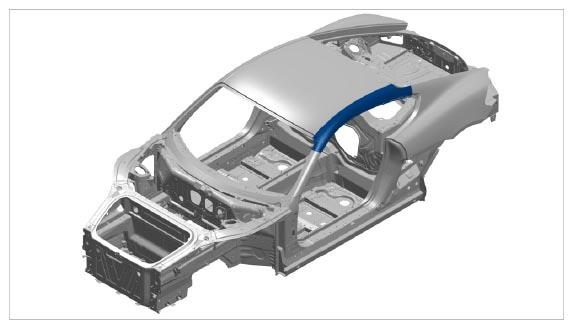

Fig 1: Roof Pillar Component Location (Cayman, Cayman S, Cayman GTS, Cayman "Black/Style Edition", Boxster "Black/Style Edition", Cayman GT4)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

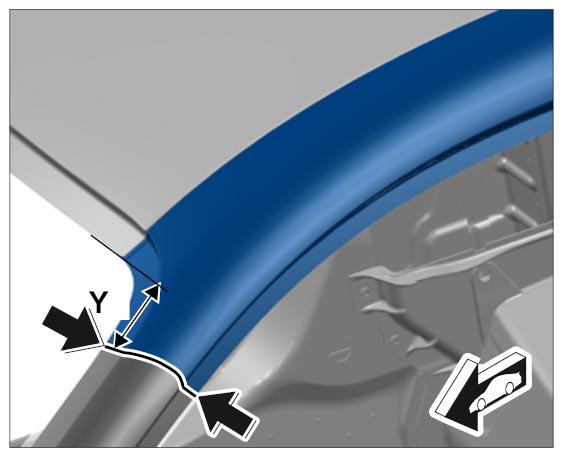

Mark cuts X and Y  in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

1. Mark and make cuts. → Distance: 50 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

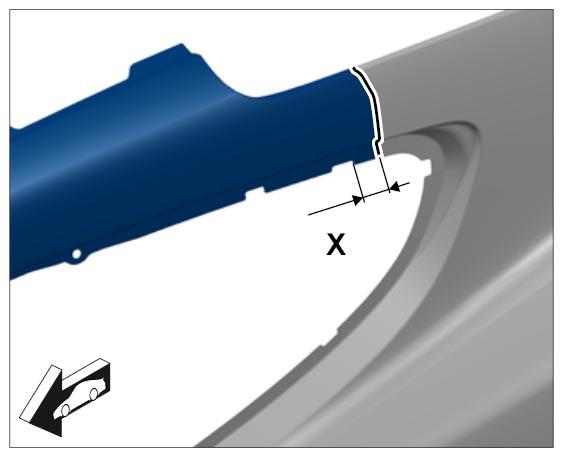

   Mark cuts X and Y  in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

   Information

   Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

2. Mark and make cuts. → Distance: 60 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

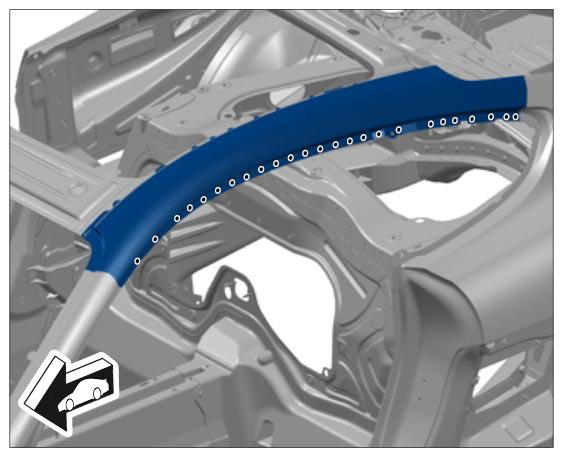

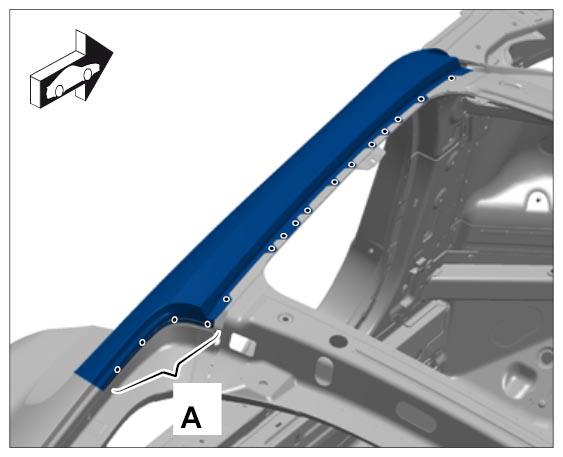

3. Drill out spotwelds. Spotweld drill Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. Heat the bonding surfaces.
   1. 4.1. Remove the roof pillar.
