Removing Roof

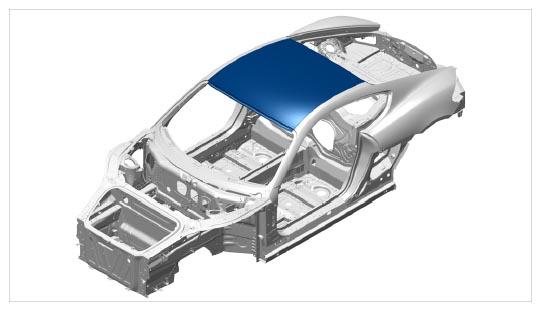

Fig 1: Roof Component Location (Cayman, Cayman S, Cayman GTS, Cayman "Black/Style Edition", Boxster "Black/Style Edition", Cayman GT4)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

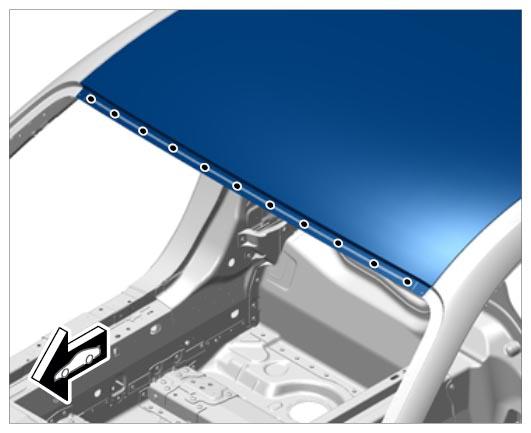

Remove spotwelds.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Drill out spotwelds using spotweld drill .

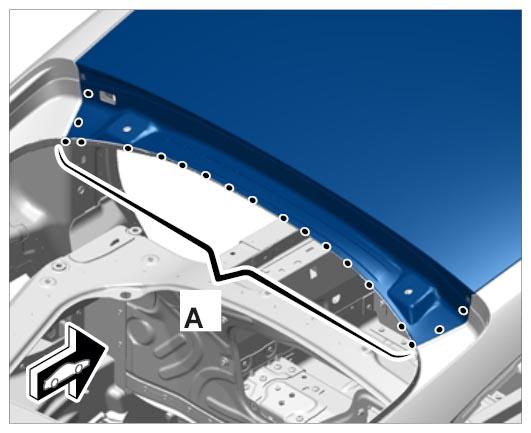

2. 1.2. Grind down spotwelds in area -A- using a spherical cutter.

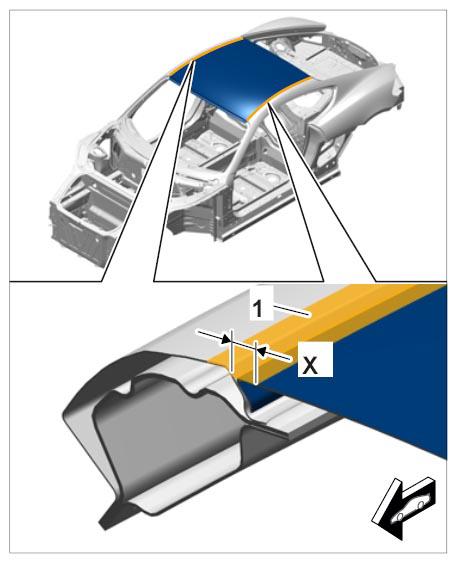

Affix adhesive tape -1- along the edge of the roof on both sides at dimension -X- . → Distance: 2 mm+2 mm
Adhesive tape serves as cut line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.
Make cut on both sides.

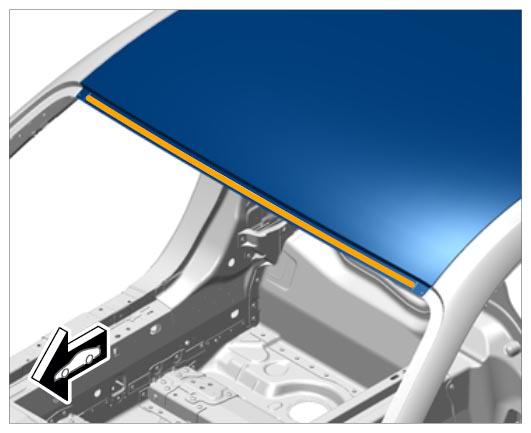

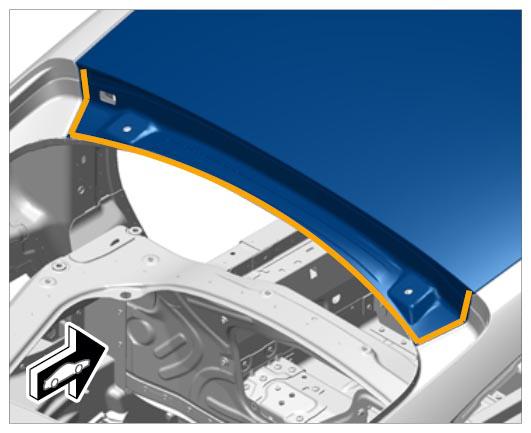

Heat connection areas using the hot-air gun.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove roof (with the help of two people).
Information
- During separation make sure that the components beneath are not damaged .
Remove remaining pieces of roof.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

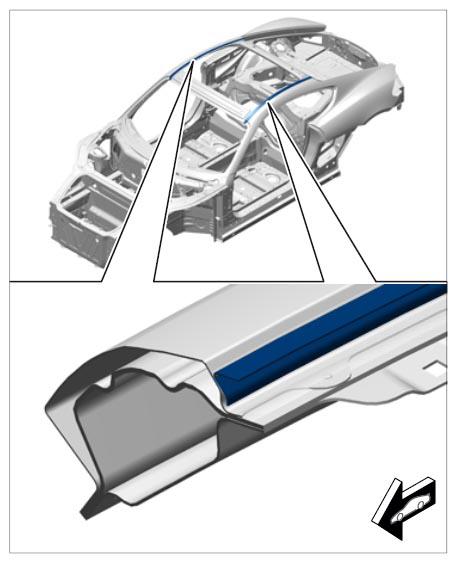

1. 6.1. Cut off laser soldered joints on side panels.
2. 6.2. Remove remaining pieces.
