Preparing Connection Areas Of Body For Installing Roof

Information

Do not apply zinc powder paint to the bonding areas.

1. Clean welding and bonding areas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

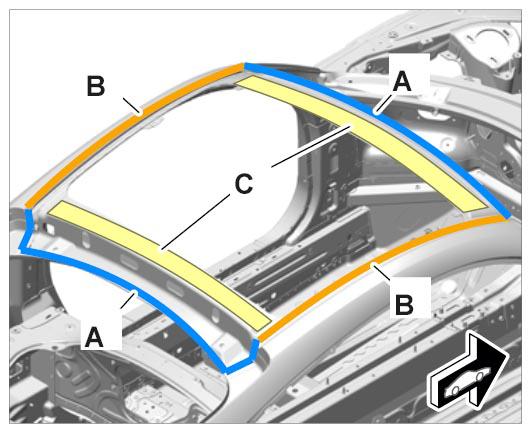

   1. 1.1. Prepare connection flanges in areas -A-  for resistance spot-welding and bonding.
   2. 1.2. Prepare connection flanges in areas -B-  for bonding.
   3. 1.3. Prepare bonding areas of support adhesive -C-  for bonding with window adhesive.
2. Touch up any paint damage in areas that will no longer be accessible later.
