Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw securing wheel housing liner to body Item 2 Tightening torque 3 Nm (2 lb.ft)

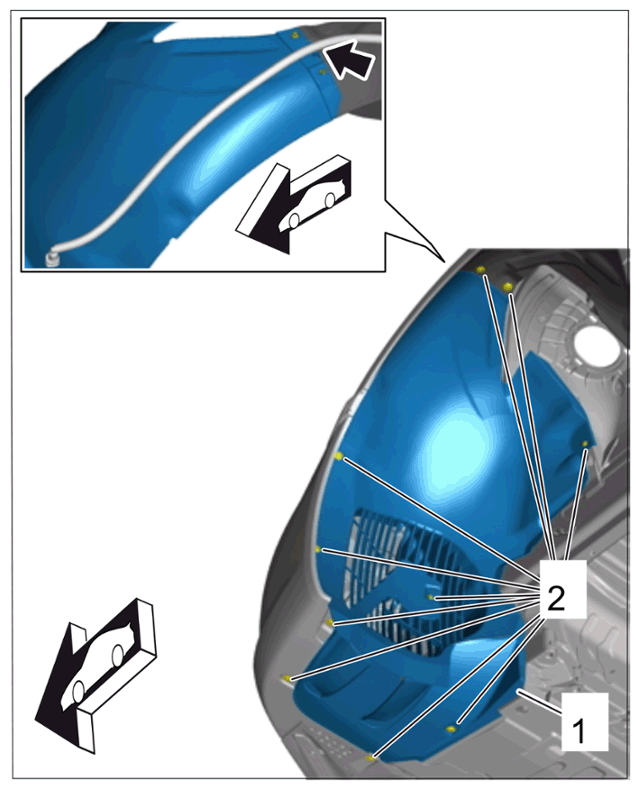

G14268948Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing front wheel housing liner - front part

Fastening screw securing wheel housing liner to body Item 2 Tightening torque 3 Nm (2 lb.ft)

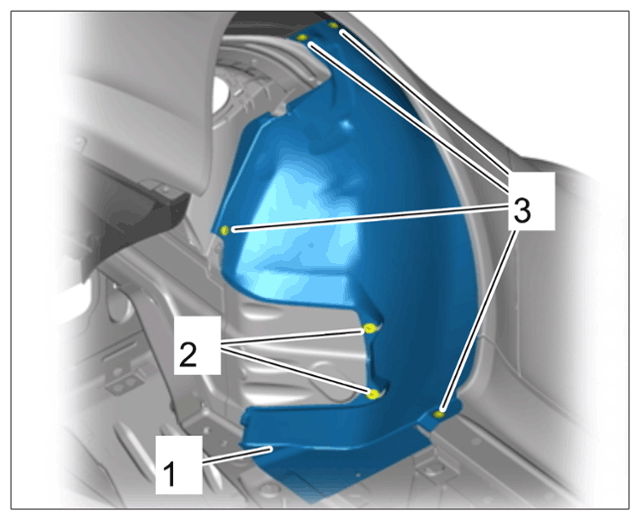

G14268949Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing front wheel housing liner - rear part

Fastening nuts securing wheel housing liner to body Item 3 Tightening torque 3 Nm (2 lb.ft)
G14268950Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing front wheel housing liner - rear part
