Preparing Body Front Section For Installation

Fit body front section and secure it to the body. Check gap dimensions. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS
Position body front section using the straightening system.
1. 1.1. Drill bores for the rivets through the existing holes. → Diameter: 6.6 mm

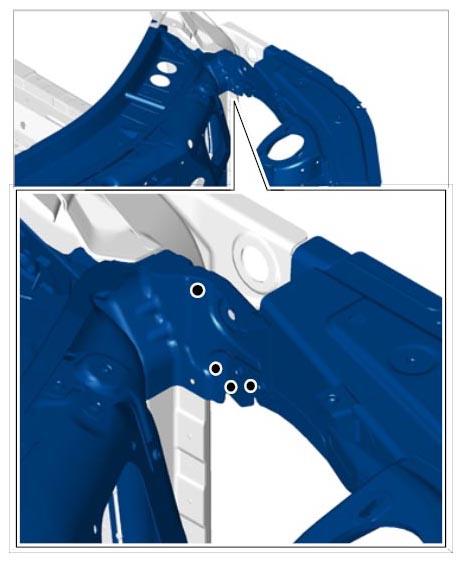

  Fig 1: Identifying Upper Longitudinal Member Area Holes
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

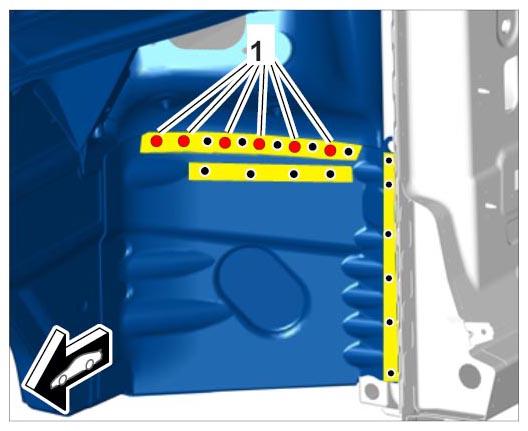

  Fig 2: Identifying Wheel Housing Area Holes
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drill through existing bore holes from inside the vehicle. → Diameter: 6.6 mm

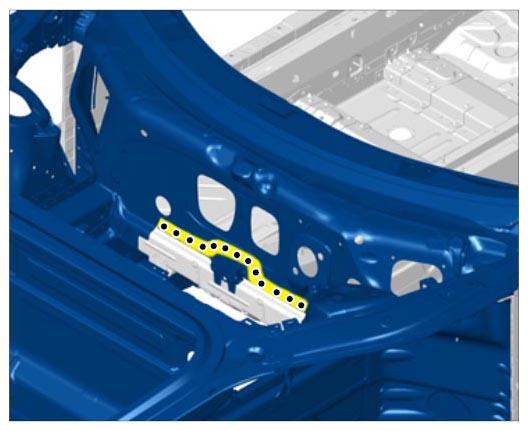

Fig 3: Identifying Bulkhead Area Holes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drill through existing bore holes from inside the vehicle. → Diameter: 6.6 mm

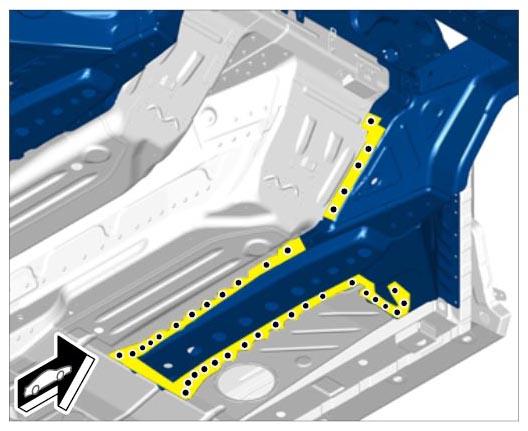

Fig 4: Identifying Side Member Area Holes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

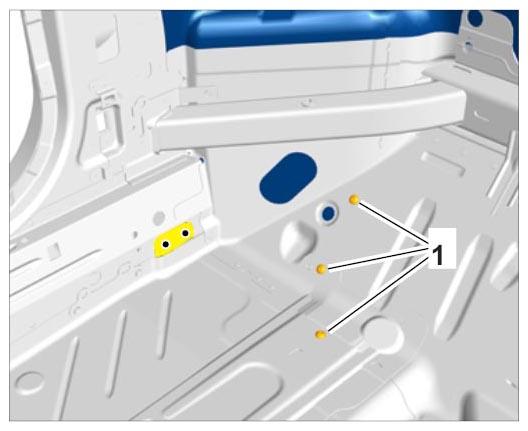

Fig 5: Identifying Footwell Area Holes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

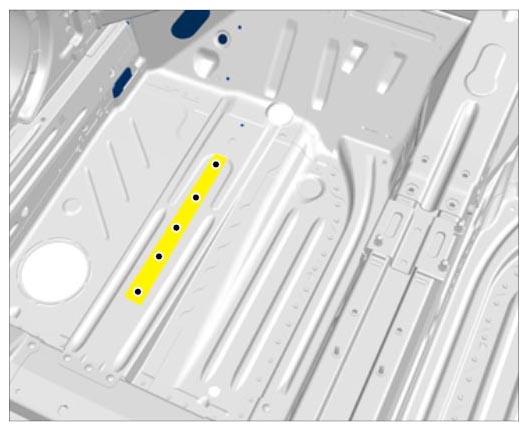

Fig 6: Identifying Footwell Area Holes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Prepare connection areas on the body front section.

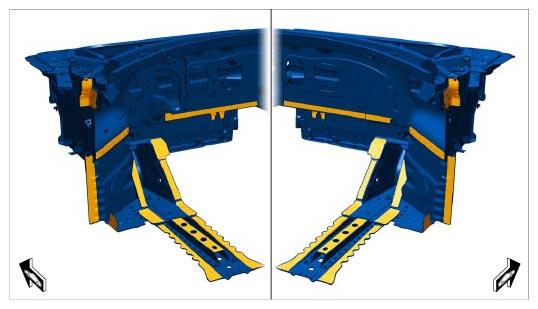

Fig 7: Identifying Body Front Section
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
