Cavity Preservation

Information

• In the case of repair, the standard cavity preservation material must be applied to body accessories according to the following illustrations  .
• The cavity preservation must be applied after completion of the assembly work  .

Information

Cavity preservation wax is applied using a flow-coating procedure.

1. Guide the long probe through the cable duct opening -1-  and apply cavity preservation to the inside of the bulkhead -2-  and the floor of the reinforcement -3-  .
   Fig 1: Identifying A-Pillar Area And Inner Bulkhead

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Cavity preservation wax is applied using a flow-coating procedure.

2. Apply cavity preservation through the openings on the underside of the side skirt -1 and 2-  to the inside of the side skirt -3-  and bulkhead -4-  .

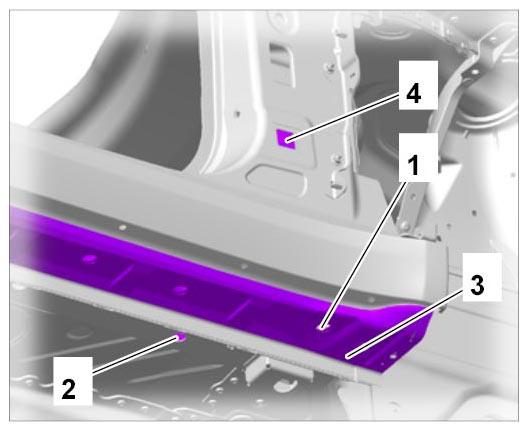

   Fig 2: Identifying Side Skirt Area And Inner Bulkhead

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
