Installing Cowl Panel Cover

  1. Insert the centering pin -1-  into the corresponding centering cut-out -2-  to align the cowl panel cover at the sides.

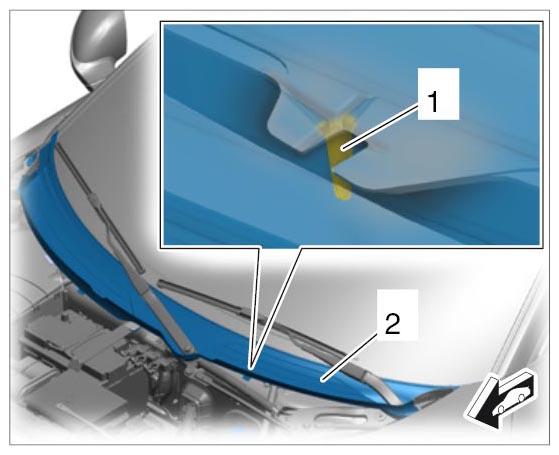

    Fig 1: Identifying Cowl Panel Cover Centering Pin
    G10024130Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Installation is performed in reverse order to removal.
