Preparing Front Side Member For Installation

Prepare bonding areas on the sub-part for bonding. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

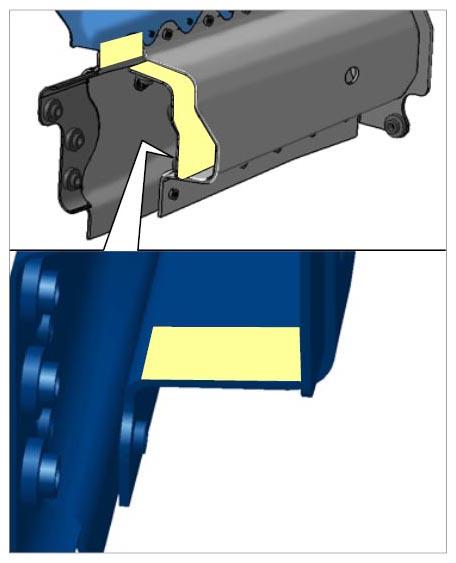

Fig 1: Identifying Front Side Member Bonding Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

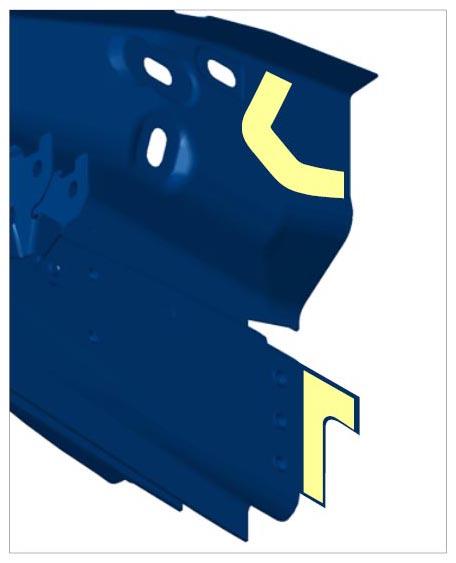

Fig 2: Identifying Front Side Member Bonding Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

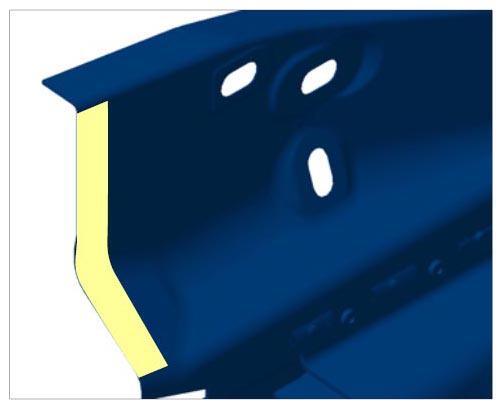

Fig 3: Identifying Front Side Member Bonding Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
