Removing Front Wheel Housing

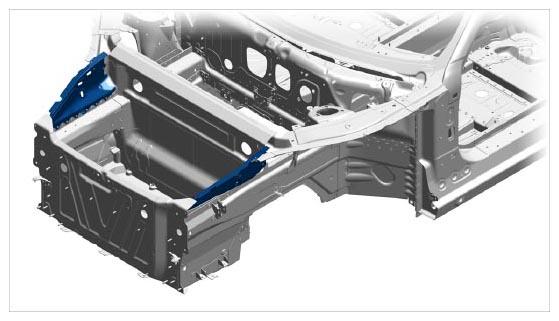

Fig 1: Identifying Front Wheel Housing Position

G10024075

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drill through punch rivets using a twist drill Nr.201 .

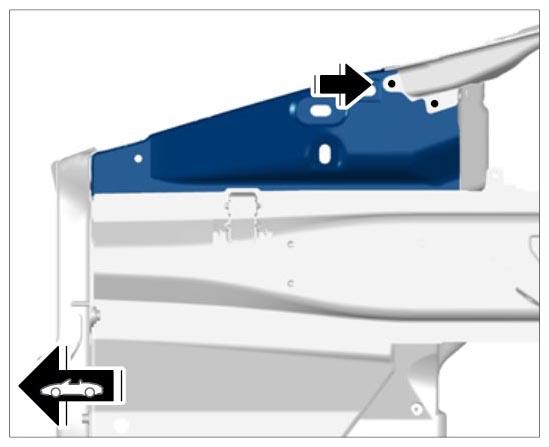

Fig 2: Removing Front Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

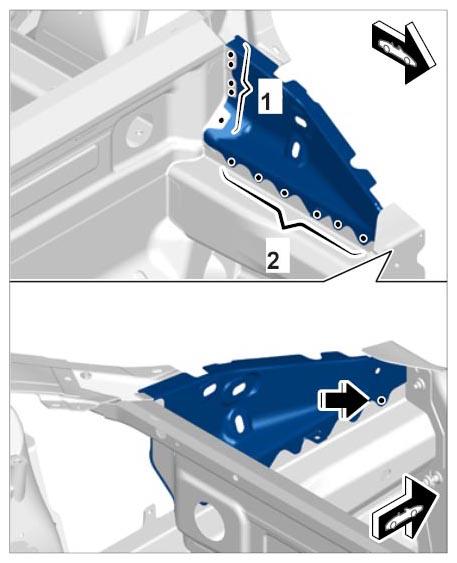

Fig 3: Removing Front Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

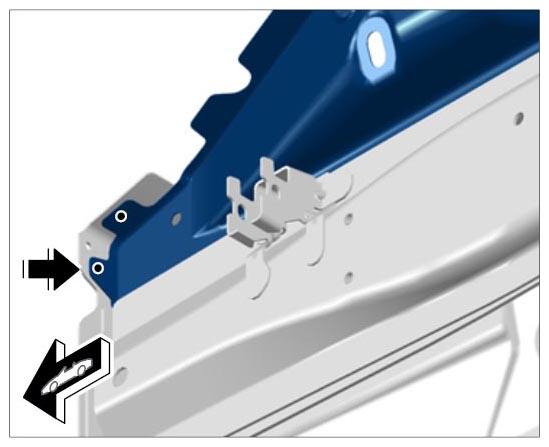

Fig 4: Removing Front Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat bonding areas. Hot-air blower, Leister-Electron/V.A.G. 1416 WE 1119

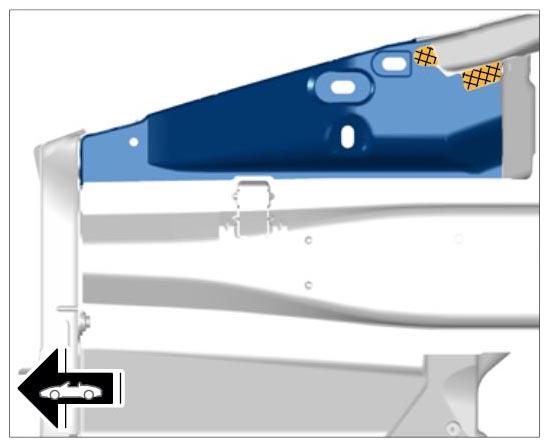

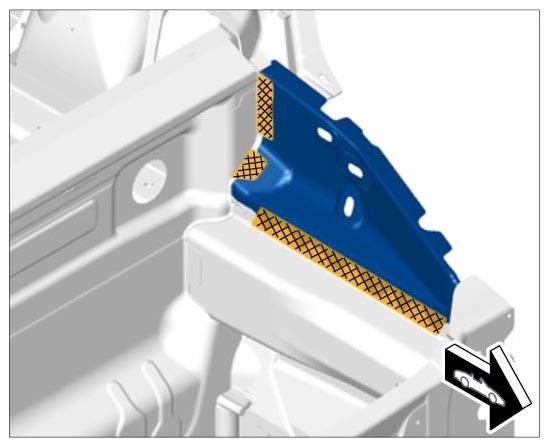

Fig 5: Identifying Front Wheel Housing Bonding Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

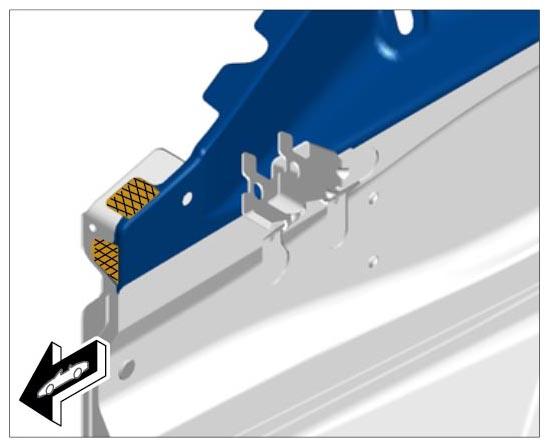

Fig 6: Identifying Front Wheel Housing Bonding Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

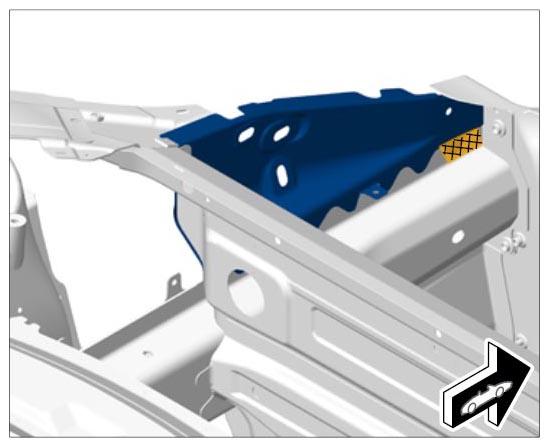

Fig 7: Identifying Front Wheel Housing Bonding Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 8: Identifying Front Wheel Housing Bonding Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove front wheel housing.
