Installing Front Wheel Housing

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
• Do not begin bonding work until all materials and tools necessary for later repair work are available  .

1. Apply adhesive. → Application depth: 3.0 mm

   Working with body structural adhesive →  5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

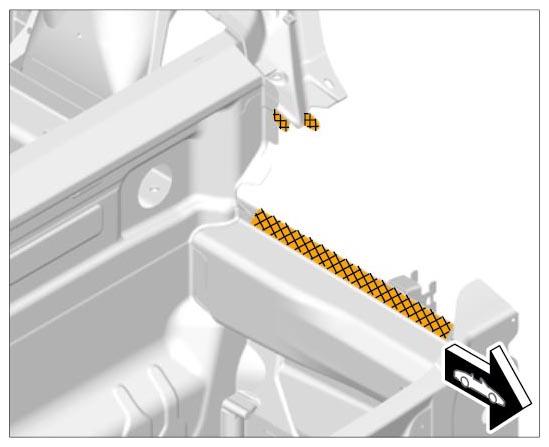

   Fig 1: Identifying Wheel Housing Adhesive Applying Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

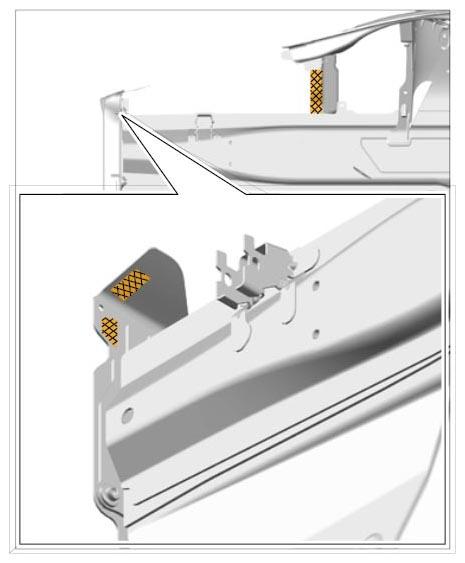

   Fig 2: Identifying Wheel Housing Adhesive Applying Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

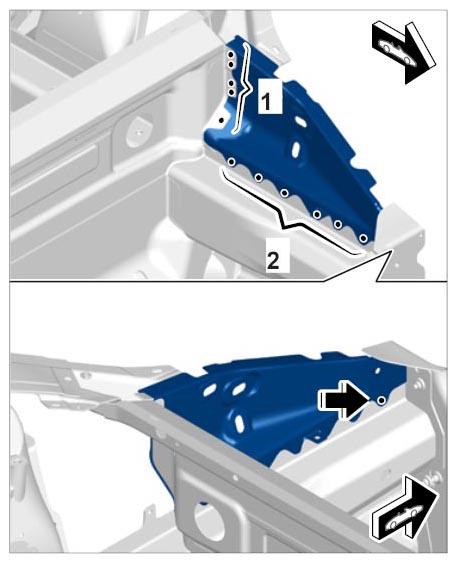

2. Rivet in front wheel housing.
   1. 2.1. Rivet in front wheel housing in area -1-  → BLIND RIVET 999.190.227.01.
   2. 2.2. Rivet in front wheel housing in area -2-  → BLIND RIVET 999.190.230.01.
      Fig 3: Removing Front Wheel Housing

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

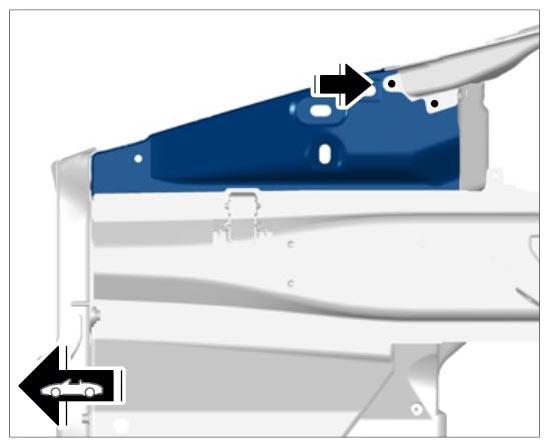

3. Rivet in front wheel housing. → BLIND RIVET 999.190.227.01
   Fig 4: Removing Front Wheel Housing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

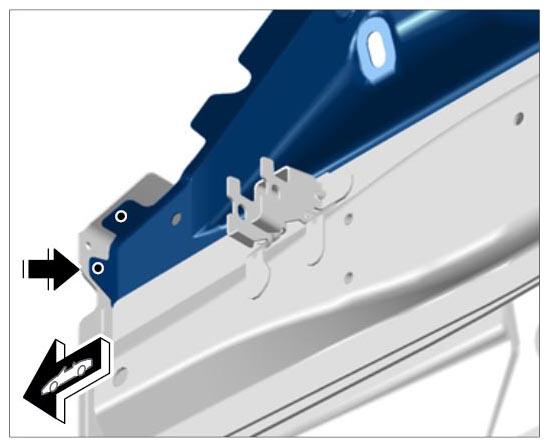

4. Rivet in front wheel housing. → BLIND RIVET 999.190.227.01
   Fig 5: Removing Front Wheel Housing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
