Removing Longitudinal Member For Wheel Housing Upper Section

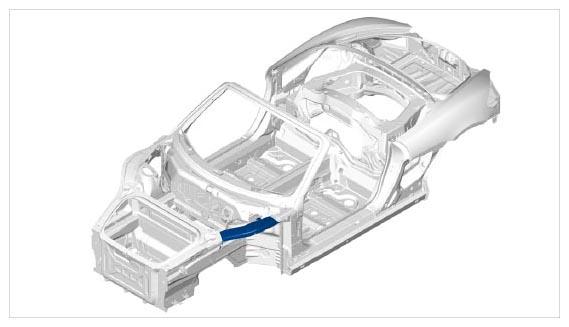

Fig 1: Identifying Longitudinal Member For Wheel Housing Upper Section Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove bracket for longitudinal member for wheel housing.
Information

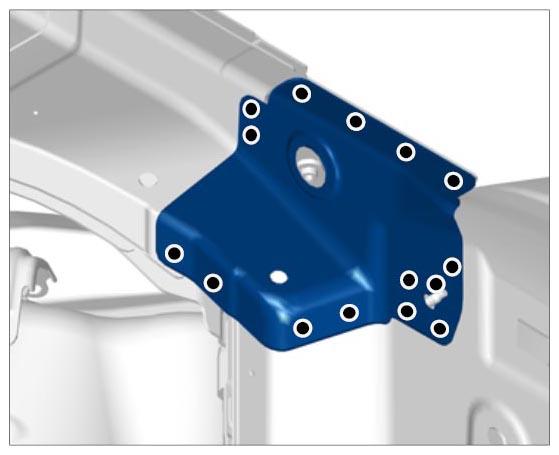

Drill out the connection point on one side only. Do not damage the plate underneath.
1. 1.1. Drill out spotwelds. Spotweld drill bit Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139

  Fig 2: Identifying Longitudinal Member For Wheel Housing Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

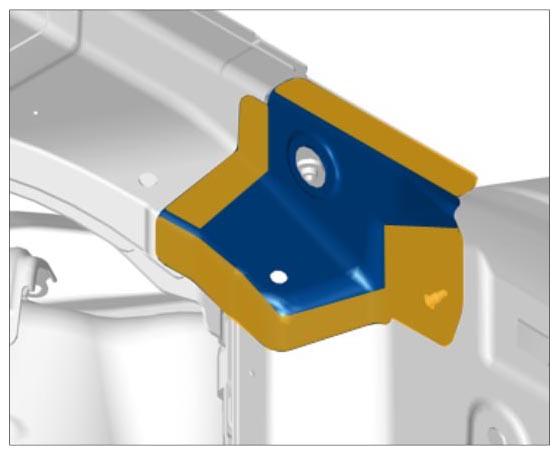

Heat bonding areas of bracket for longitudinal member for wheel housing.
1. 2.1. Remove bracket for longitudinal member for wheel housing.

  Fig 3: Identifying Longitudinal Member For Wheel Housing Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

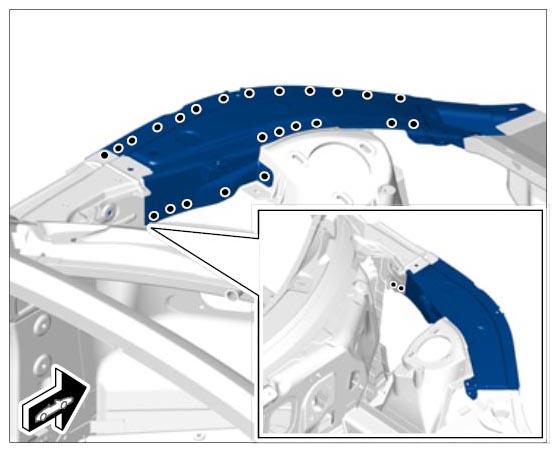

Drill through punch rivets on upper longitudinal member plate -1- using a twist drill Nr.201 .

Fig 4: Removing Upper Longitudinal Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

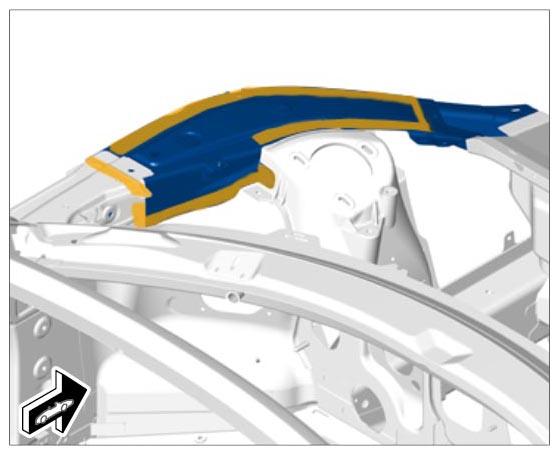

Heat bonding areas of upper longitudinal member -1- .
1. 4.1. Remove upper longitudinal member.

  Fig 5: Identifying Bonding Areas
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

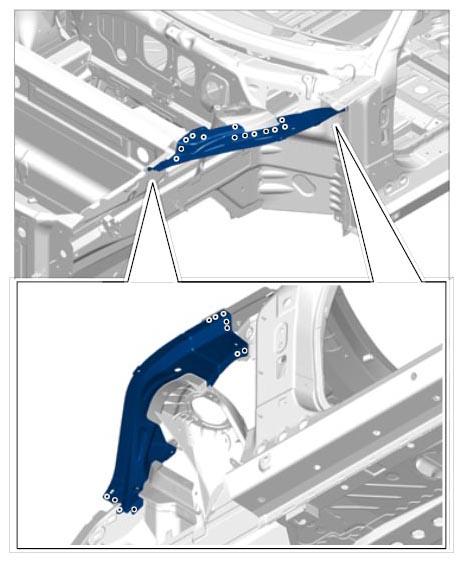

Drill through punch rivets on the outer upper longitudinal member using a twist drill Nr.201 .

Fig 6: Identifying Outer Upper Longitudinal Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

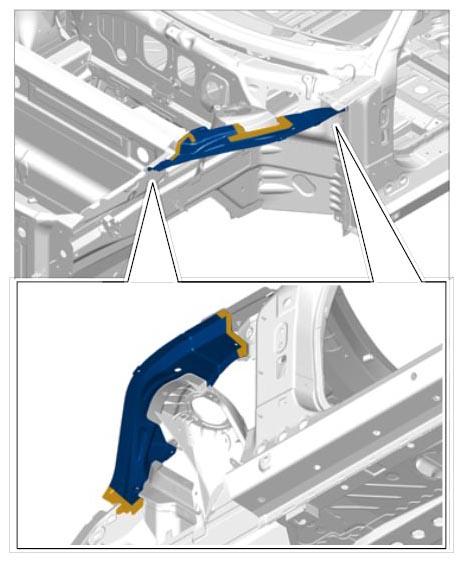

Heat bonding areas of outer upper longitudinal member.
1. 6.1. Remove outer upper longitudinal member.

  Fig 7: Identifying Bonding Areas
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
