Preparing Longitudinal Member For Wheel Housing

Check gap dimensions. →  5X00IN DIAGRAM - BODY GAP DIMENSIONS

1. 1.1. Drill holes for rivets through the existing holes using a drill bit with a diameter of → Diameter: 6.6 mm  .

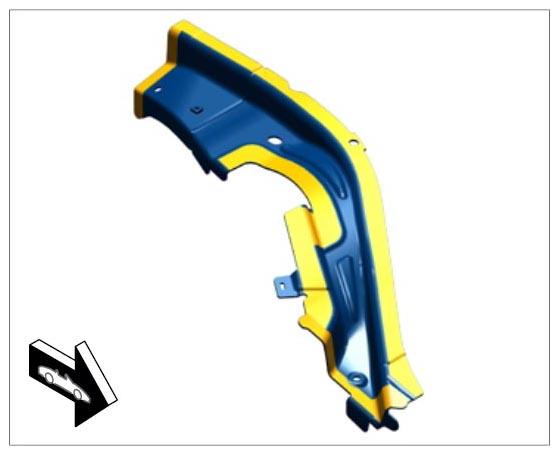

   Fig 1: Identifying Outer Upper Longitudinal Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check gap dimensions. →  5X00IN DIAGRAM - BODY GAP DIMENSIONS

1. 2.1. Drill holes for rivets through the existing holes using a drill bit with a diameter of → Diameter: 6.6 mm  .

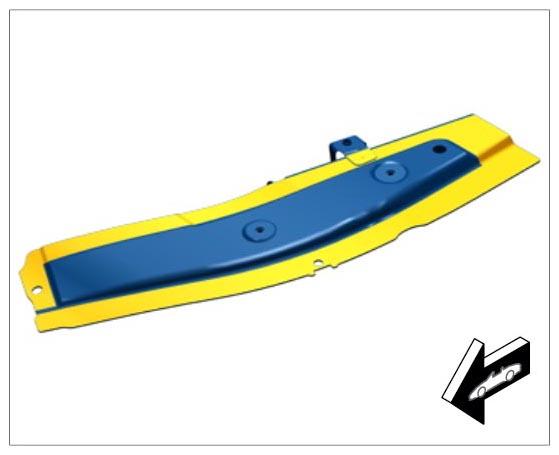

   Fig 2: Identifying Upper Longitudinal Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
