Installing Longitudinal Member For Wheel Housing

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
• Do not begin bonding work until all materials and tools necessary for later repair work are available  .

1. Apply adhesive. → Application depth: 3.0 mm

   Working with body structural adhesive →  5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

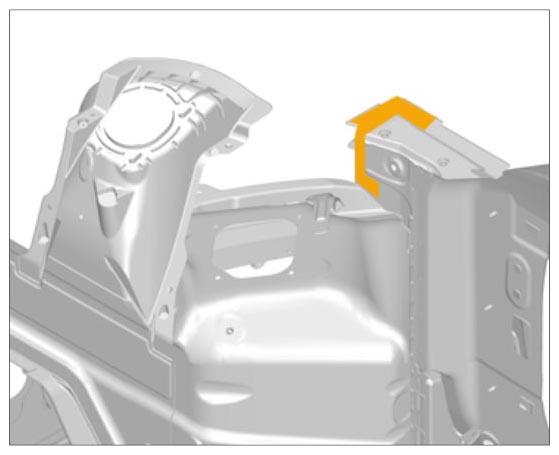

   Fig 1: Identifying Longitudinal Member For Wheel Housing Bonding Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

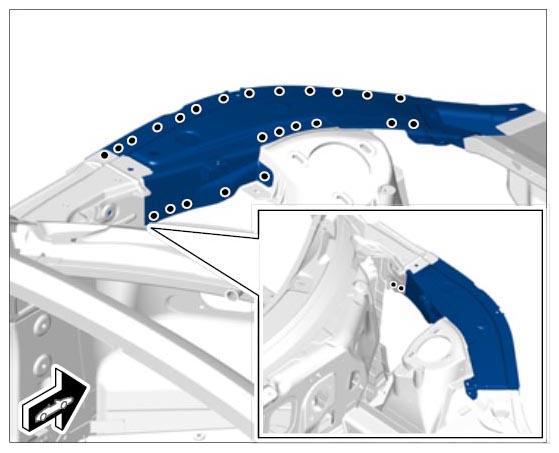

   Fig 2: Identifying Longitudinal Member For Wheel Housing Bonding Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Rivet in outer upper longitudinal member. → BLIND RIVET 999.190.227.01

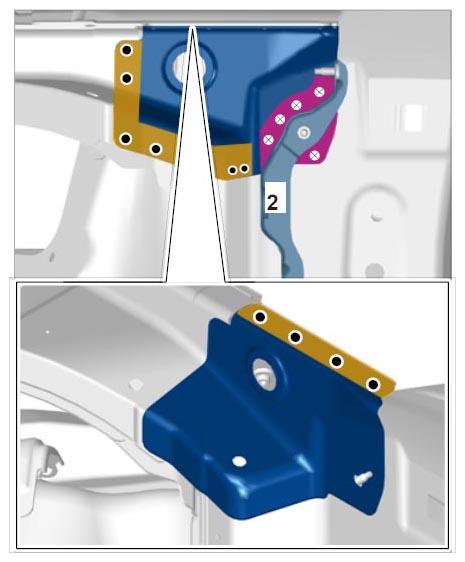

   Fig 3: Identifying Outer Upper Longitudinal Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Apply adhesive.

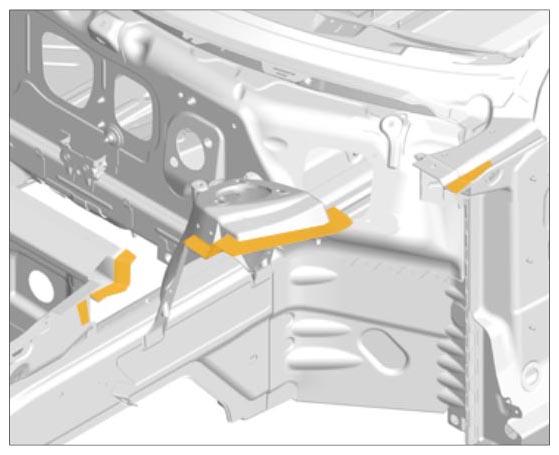

   Fig 4: Identifying Wheel Housing Bonding Areas Bonding Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Rivet in upper longitudinal member. → BLIND RIVET 999.190.227.01

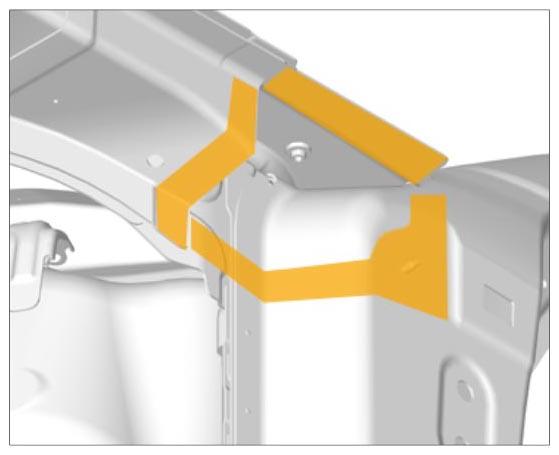

   Fig 5: Installing Upper Longitudinal Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Prepare connection areas on bracket for longitudinal member for wheel housing.

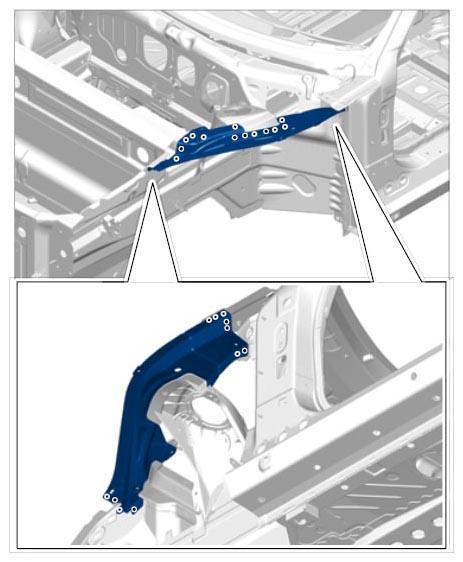

   Fig 6: Identifying Longitudinal Member Connection Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Straighten sealing surface and connection areas of the body.
7. De-burr connection areas and prepare for welding.

   Information

   • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
   • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
   • Do not begin bonding work until all materials and tools necessary for later repair work are available  .
8. Prepare marked areas for welding and bonding.
9. Fit bracket for longitudinal member for wheel housing.
   1. 9.1. For better positioning of the bore holes, fit the wing supporting plate -2-  .
10. Drill holes for rivets in the marked areas -1-  using a drill bit with a diameter of → Diameter: 6.6 mm  .

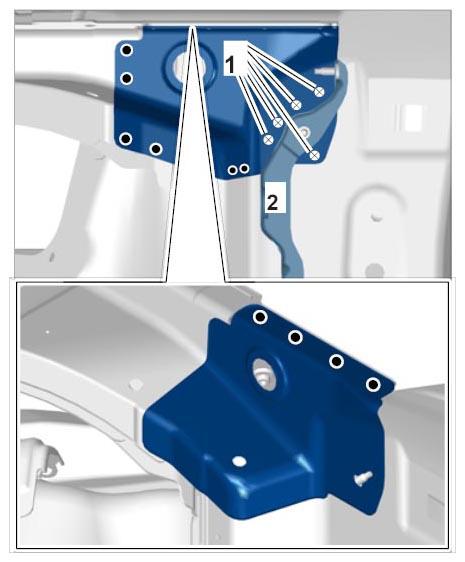

    Fig 7: Identifying Rivets Holes

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
    • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
    • Do not begin bonding work until all materials and tools necessary for later repair work are available  .
11. Apply adhesive. → Application depth: 3.0 mm

    Working with body structural adhesive →  5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

    1. 11.1. Fit and secure supporting plate for longitudinal member for wheel housing.

       Check gap dimensions. →  5X00IN DIAGRAM - BODY GAP DIMENSIONS

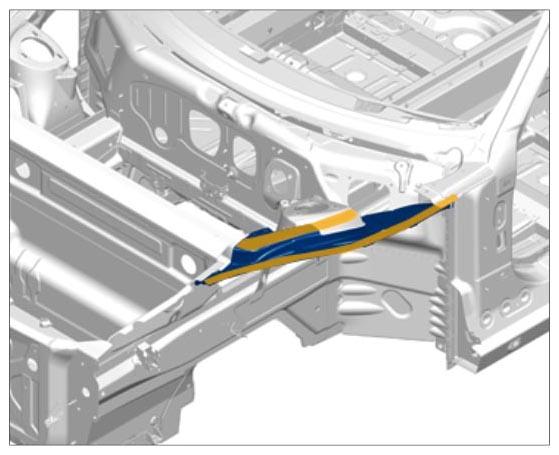

       Fig 8: Identifying Adhesive Applying Area

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. Rivet in supporting plate for longitudinal member for wheel housing in the relevant area. → BLIND RIVET 999.190.227.01
    1. 12.1. Resistance spot-weld supporting plate for longitudinal member for wheel housing in the relevant area.
       Fig 9: Installing Supporting Plate For Wheel Housing Longitudinal Member

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Yellow	Resistance spot-welding + bonding
       Red	Apply a full weld (using inert gas) without bonding
       Pink	Riveting + bonding
       Blue	Bonding
