Removing Front Wheel Housing Liner - Rear Section

  1. Unscrew fastening nuts -2-  and fastening screws -3-  .
  2. Unscrew fastening screws securing rear section of front wheel housing liner to the underbody at the body.
  3. Remove rear section of front wheel housing liner -1-  .

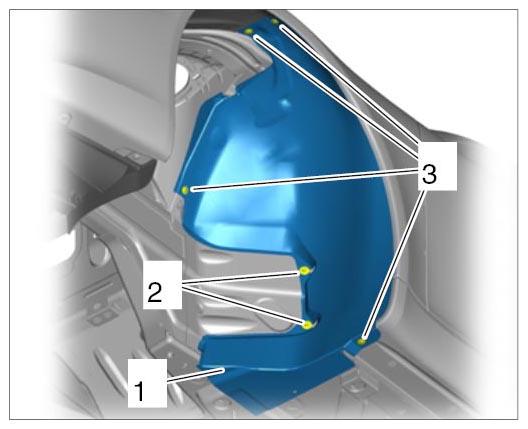

    4. Fig 1: Identifying Front Wheel Housing Liner Nut And Screw - Rear Section
    G10024041Courtesy of PORSCHE CARS NORTH AMERICA, INC.
