Removing Front Wheel Housing Liner - Front Section

  1. Unscrew fastening screws -2-  and remove front section of the front wheel housing liner -1-  .

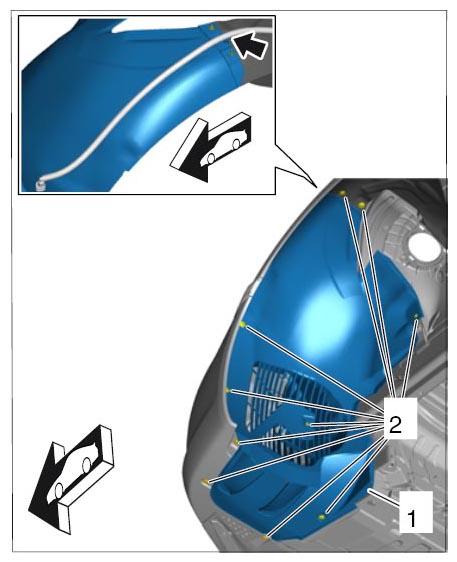

    Fig 1: Removing Front Wheel Housing Liner - Front Section
    G10024042Courtesy of PORSCHE CARS NORTH AMERICA, INC.
