Installing Front Wheel Housing Liner - Rear Section

  1. Fit rear section of front wheel housing liner -1-  . Screw in fastening nuts -2-  and fastening screws -3-  and tighten to the specified tightening torque Tightening torque 3 Nm (2 ftlb.) Tightening torque 3 Nm (2 ftlb.)  until secure.

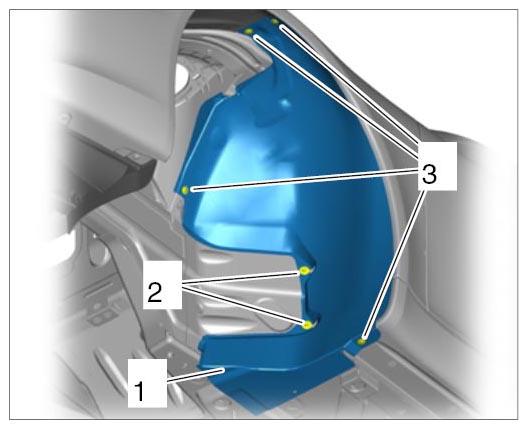

    Fig 1: Identifying Front Wheel Housing Liner - Rear Section
    G10024044Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw in fastening screws securing rear section of front wheel housing liner to the underbody at the body and tighten to Tightening torque 3 Nm (2 ftlb.)  until secure.
