Installing Front Wheel Housing Liner - Front Section

  1. Fit front section of front wheel housing liner -1-  . Screw in fastening screws -2-  and tighten to the specified tightening torque Tightening torque 3 Nm (2 ftlb.)  until secure.

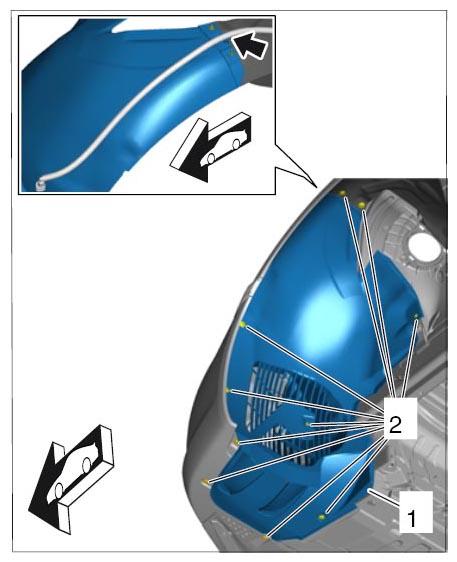

    Fig 1: Installing Front Wheel Housing Liner Front Section
    G10024043Courtesy of PORSCHE CARS NORTH AMERICA, INC.
