Removing Masking Panel

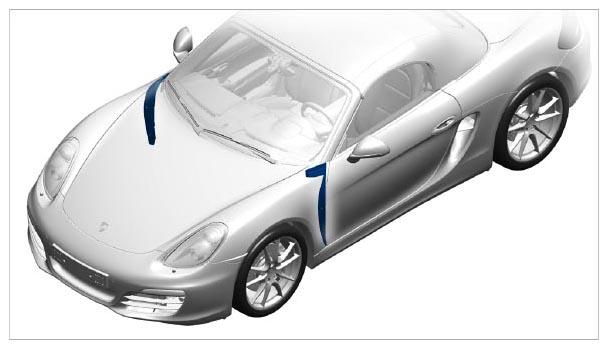

Fig 1: Identifying Front Wing Masking Panel
G10024036Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Press the pin out of the plastic expansion rivet -1-  and remove masking panel -2-  from the wing -3-  .

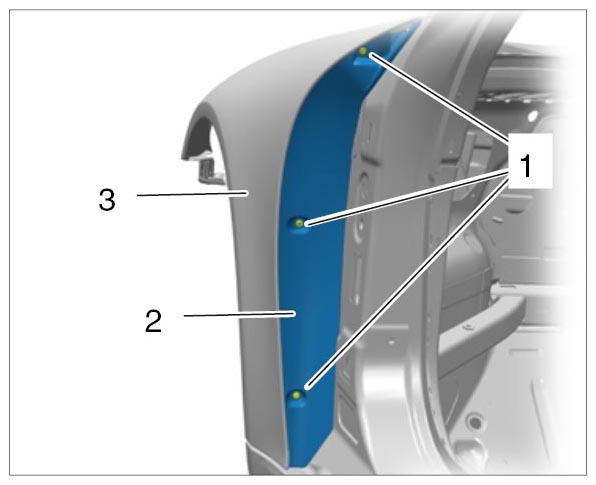

    Fig 2: Identifying Masking Panel And Wing
    G10024037Courtesy of PORSCHE CARS NORTH AMERICA, INC.
