Releasing Bottom Of Wing

Fig 1: Identifying Vehicle Wing
G10024032Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening nuts -5-  on the wing strut -4-  and bracket -2, 3-  .
  2. Remove the wing strut -4-  .
  3. Unscrew fastening screws -6-  on the bracket -2, 3-  .
  4. Remove the bracket -3-  .
  5. Unscrew fastening nut -7-  on the bracket -2-  .
  6. Remove the bracket -2-  .

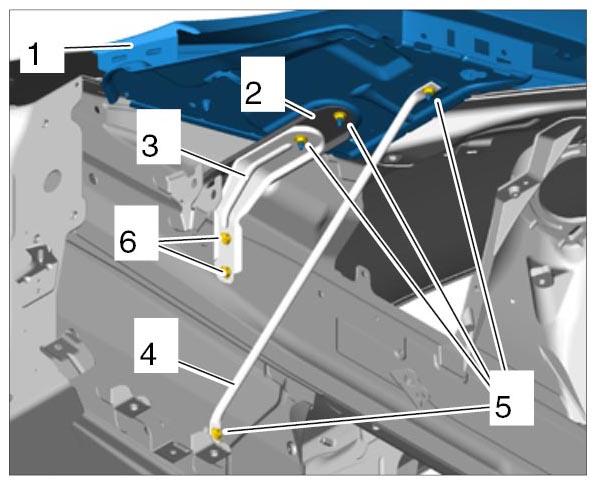

    Fig 2: Identifying Wing Bottom Bracket
    G10024033Courtesy of PORSCHE CARS NORTH AMERICA, INC.
