Preparing Front Wing Joining Plate For Installation

  1. Fit wing joining plate and secure it to the body.
    1. 1.1. Drill bores for the rivets through the existing holes. → Diameter: 6.5 mm
  2. Remove wing joining plate.
  3. Countersink bores for installing countersunk rivets. Countersink Nr.202
  4. Prepare connection areas for bonding.

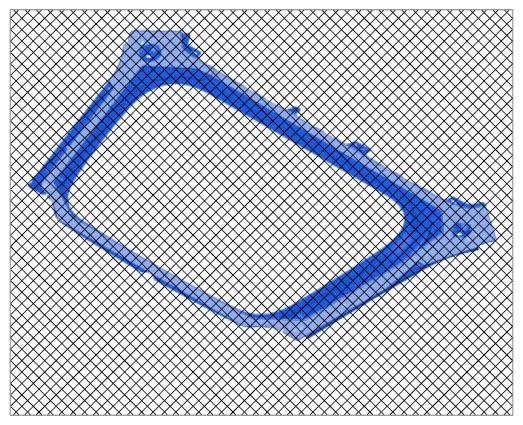

    Fig 1: Identifying Bonding Connection Areas
    G10024029Courtesy of PORSCHE CARS NORTH AMERICA, INC.
