Removing Spring Strut Mount

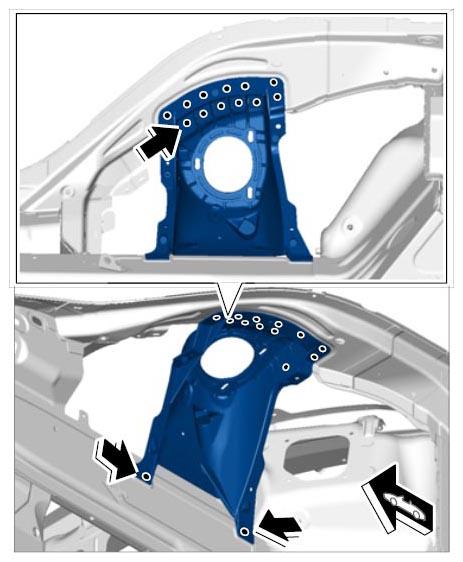

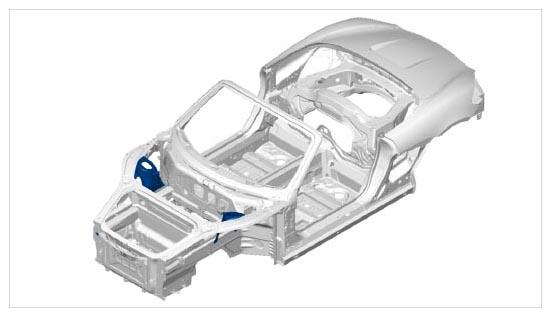

Fig 1: Identifying Spring Strut Mounts Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drill through punch rivets from below using a twist drill Nr.201 .
Information

Drill out the connection point on one side only. Do not damage the plate underneath.
1. 1.1. Drill out punch rivets at the marked positions -arrows- only as far as the plate lying underneath.

  Fig 2: Removing Spring Strut Mount
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drill through punch rivets from below using a twist drill Nr.201 .

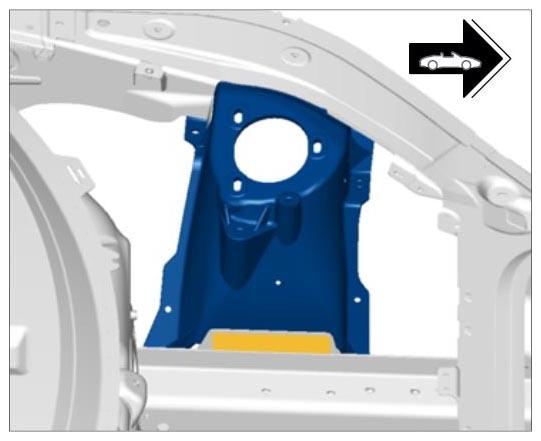

Fig 3: Removing Spring Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat bonding areas. Hot-air blower WE 1119

Fig 4: Identifying Bonding Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

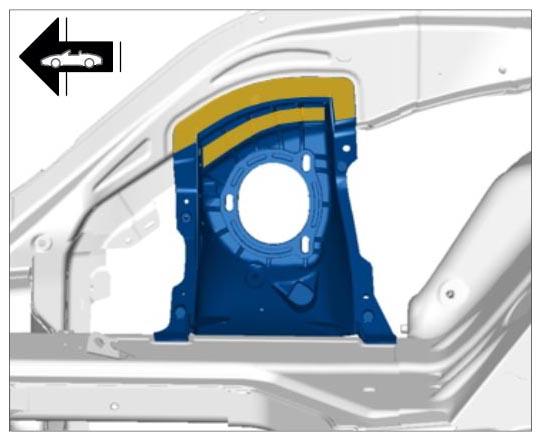

Fig 5: Identifying Bonding Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove spring strut mount.
One part of the spring strut mount serves as a template for positioning the rivet holes in the new part.
1. 5.1. Make a cut on the spring strut mount as shown.
2. 5.2. Cut off section of spring strut mount measuring -X- . → Length: 20 mm
3. 5.3. Position section of spring strut mount on the new part and drill rivet holes.

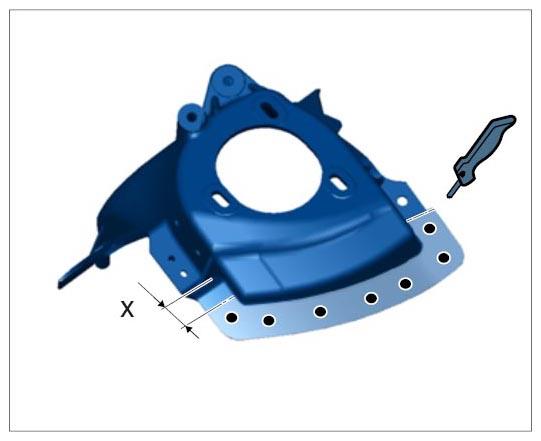

  Fig 6: Identifying Spring Strut Mount Cut Area
