Installing Spring Strut Mount

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
• Do not begin bonding work until all materials and tools necessary for later repair work are available  .

1. Apply adhesive. → Application depth: 3.0 mm

   Working with body structural adhesive → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

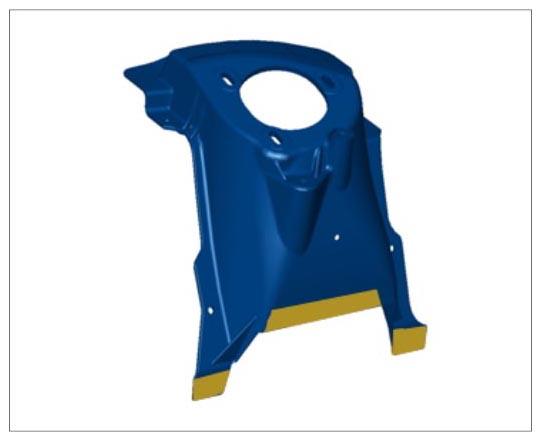

   Fig 1: Identifying Adhesive Applying Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

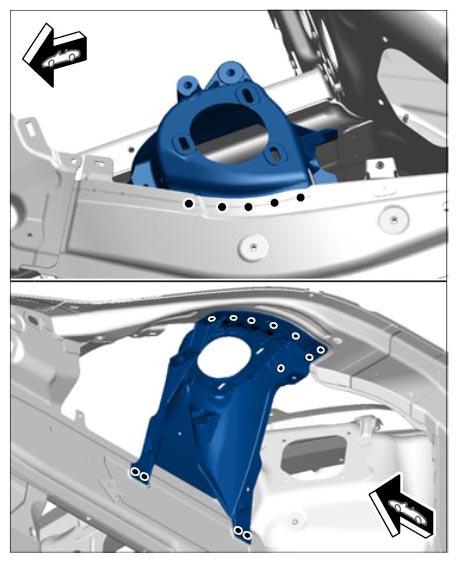

   Fig 2: Identifying Adhesive Applying Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Rivet in spring strut mount. → BLIND RIVET 999.190.227.01

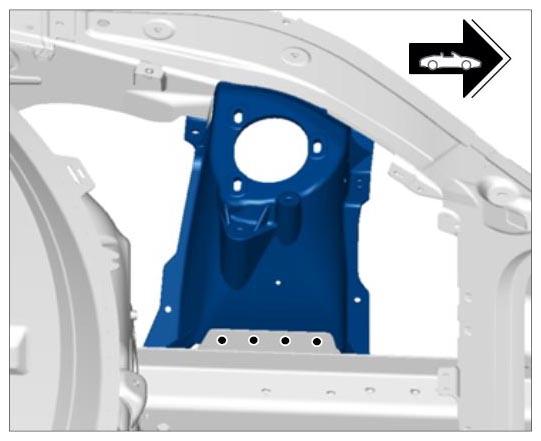

   Fig 3: Identifying Spring Strut Mount Rivet

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

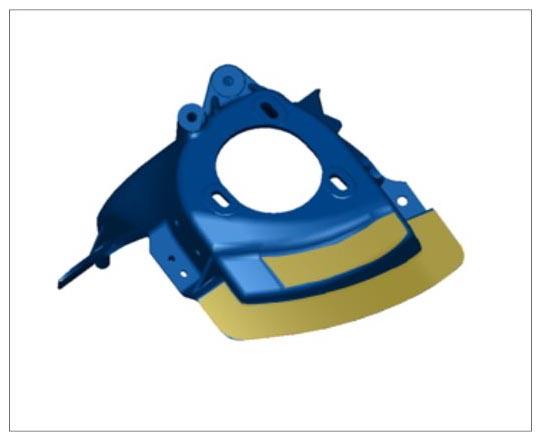

   Fig 4: Identifying Spring Strut Mount Rivet

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
