Removing Luggage Compartment Bracket

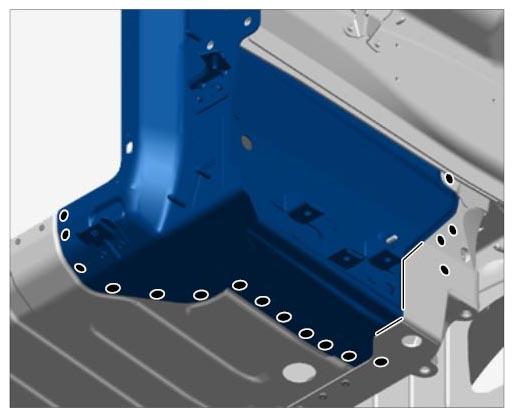

Fig 1: Identifying Luggage Compartment Bracket

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove front closing panel. →  501055 REPLACING FRONT CLOSING PANEL
2. Drill through clinch points using a → Diameter: 6.5 mm  .
3. Drill through punch rivets using a twist drill Nr.201  .

   Grind down welded seams.

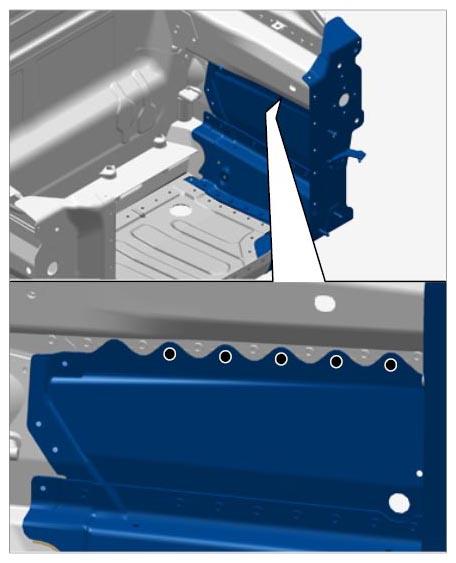

   Fig 2: Identifying Luggage Compartment Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

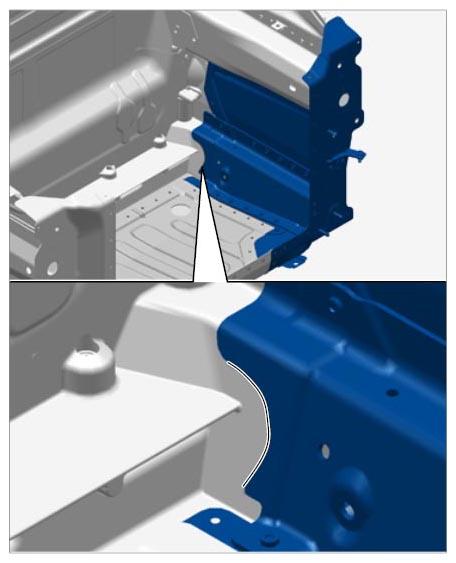

   Fig 3: Identifying Luggage Compartment Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

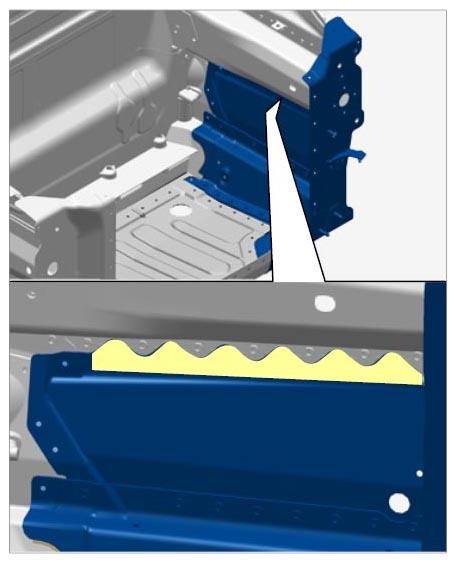

   Fig 4: Identifying Luggage Compartment Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

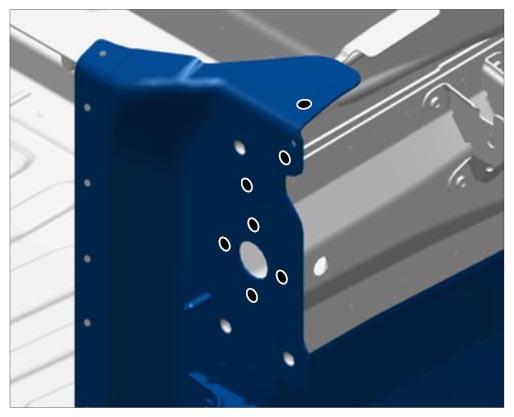

   Fig 5: Identifying Luggage Compartment Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Heat bonding areas. Hot-air blower, Leister-Electron/V.A.G. 1416 WE 1119

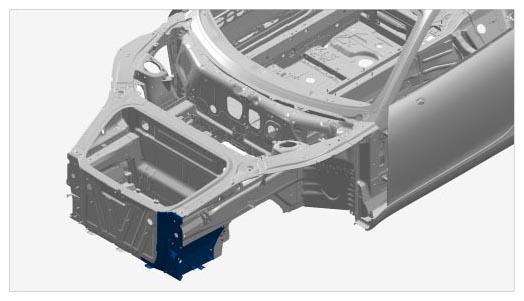

   Fig 6: Identifying Bonding Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove luggage compartment bracket.
