Preparing Luggage Compartment Bracket For Installation

Fit luggage compartment bracket and secure it to the body.
1. 1.1. Drill bores for the rivets through the existing holes. → Diameter: 6.5 mm
Drill new holes in the areas shown. → Diameter: 6.5 mm

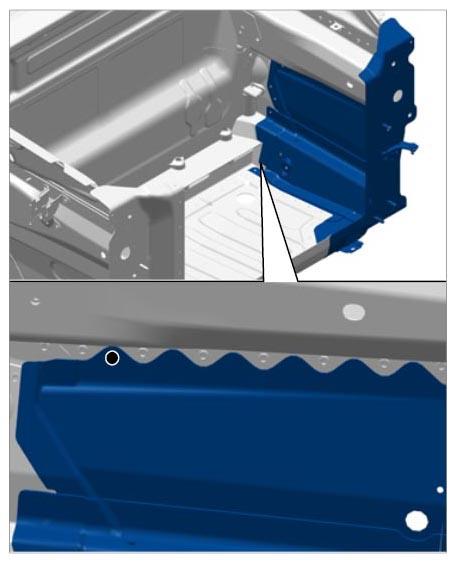

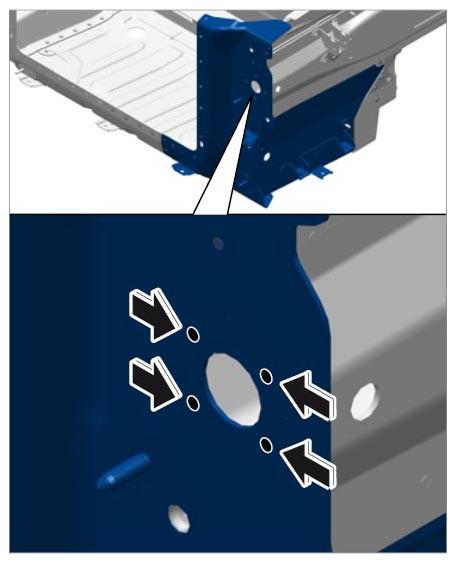

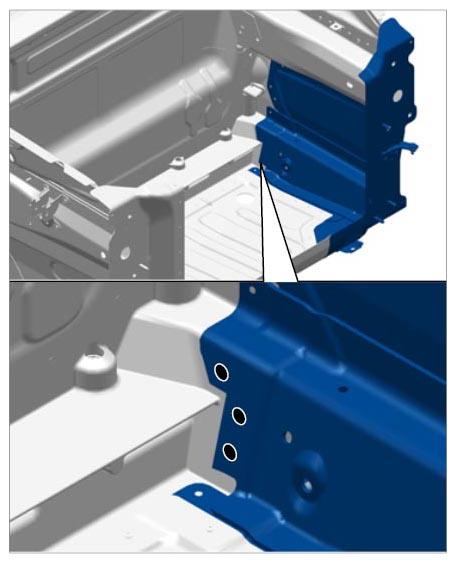

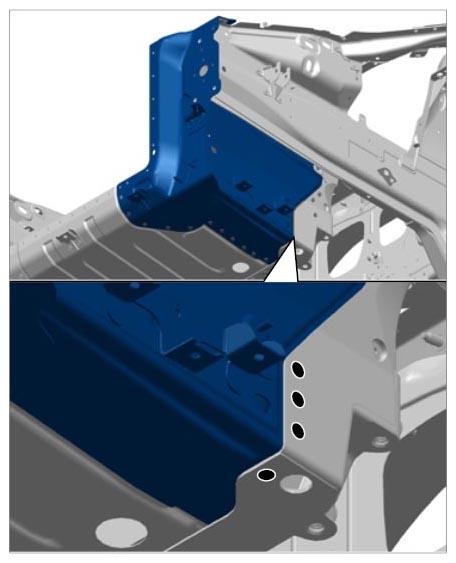

Fig 1: Locating Holes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 2: Locating Holes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 3: Locating Holes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 4: Locating Holes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Countersink the bores shown for installing countersunk rivets. Countersink Nr.202

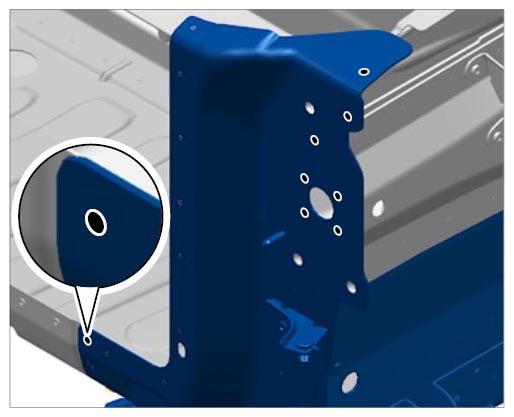

Fig 5: Identifying Counterbores
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove luggage compartment bracket.
De-burr the bores.
Prepare connection areas for bonding. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

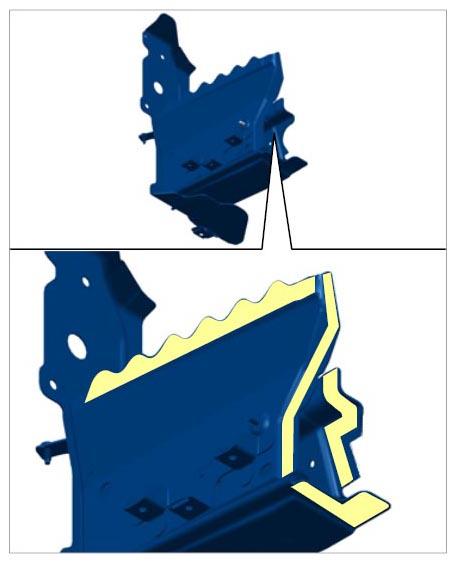

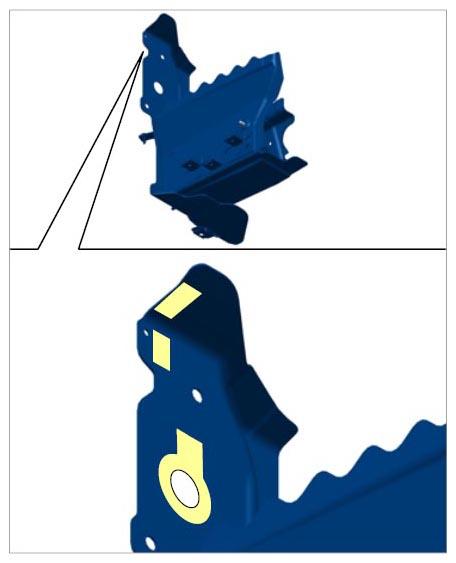

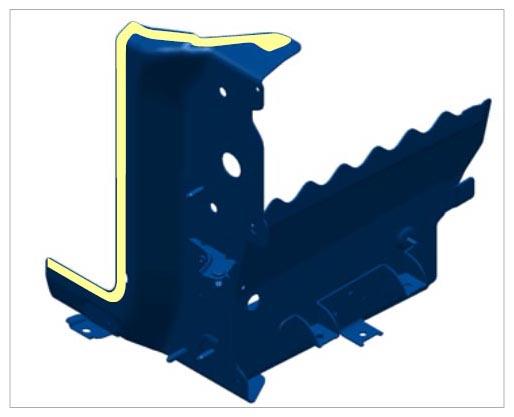

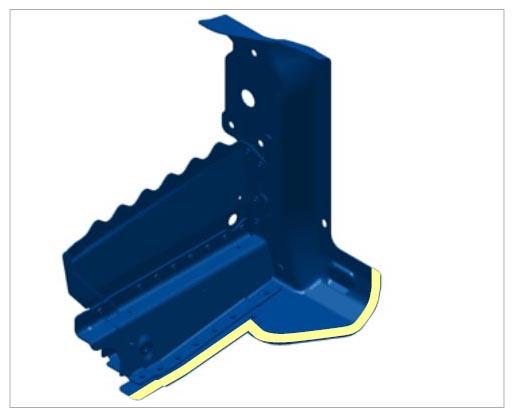

Fig 6: Identifying Luggage Compartment Bracket Bonding Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 7: Identifying Luggage Compartment Bracket Bonding Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 8: Identifying Luggage Compartment Bracket Bonding Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 9: Identifying Luggage Compartment Bracket Bonding Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
