Installing Luggage Compartment Bracket

Apply adhesive. → Application depth: 5 mm

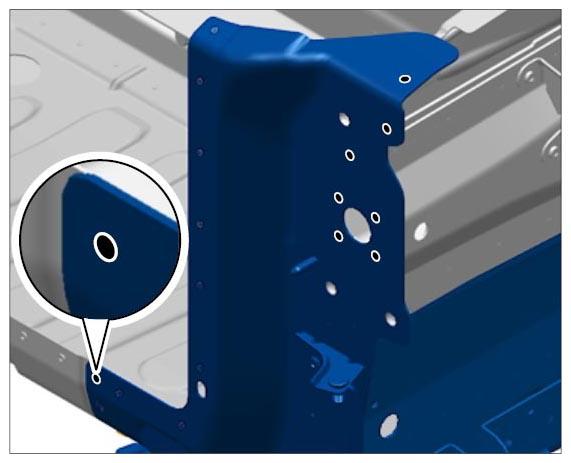

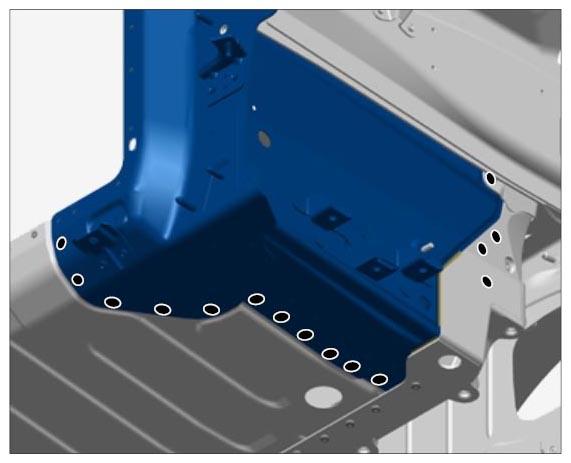

Fig 1: Identifying Luggage Compartment Bracket Bonding Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

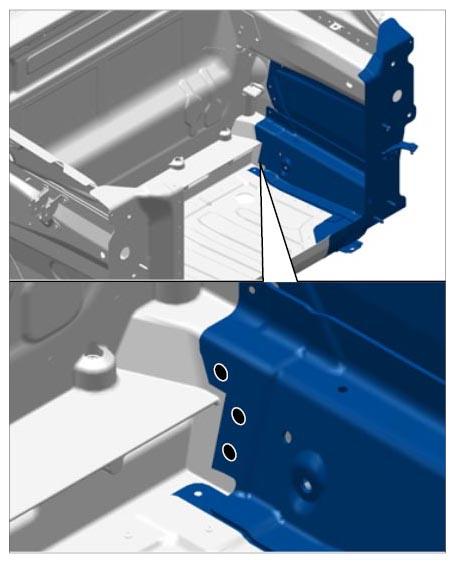

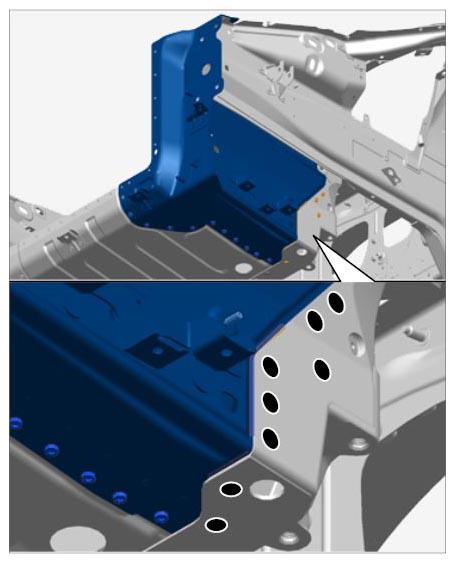

Fig 2: Identifying Luggage Compartment Bracket Bonding Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

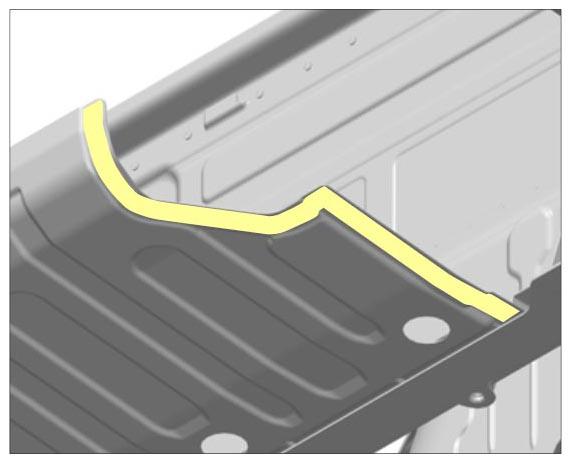

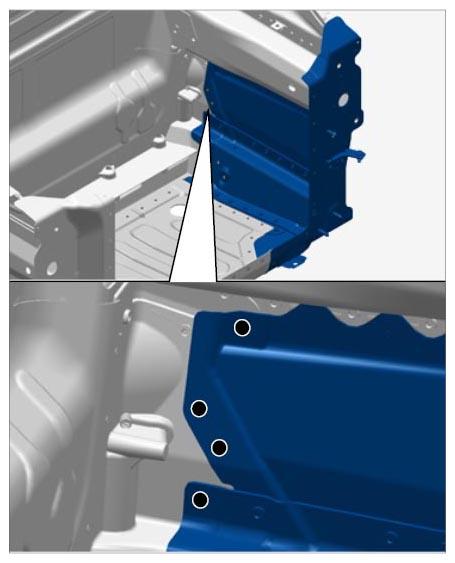

Fig 3: Identifying Luggage Compartment Bracket Bonding Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit luggage compartment bracket.
Rivet in luggage compartment bracket.
1. 3.1. Rivet in areas shown using → BLIND RIVET 999.190.228.01.

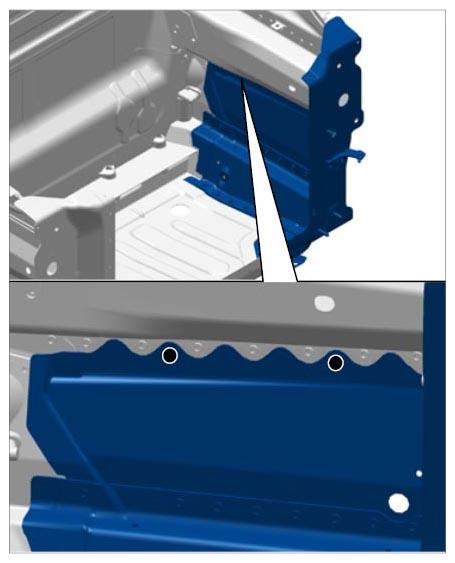

  Fig 4: Identifying Counterbores
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Rivet in areas shown using → BLIND RIVET 999.190.230.01.

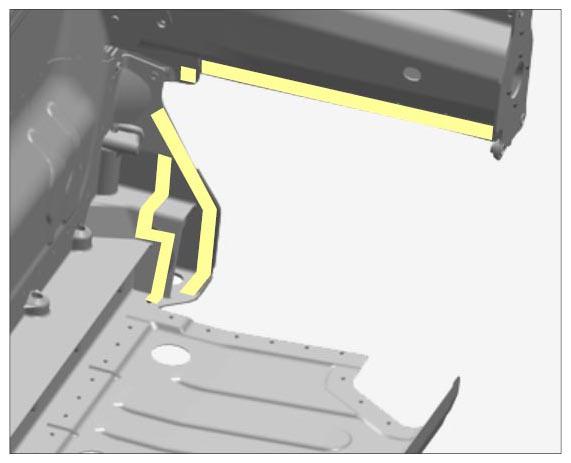

  Fig 5: Installing Luggage Compartment Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Rivet in areas shown using → BLIND RIVET 999.190.227.01.

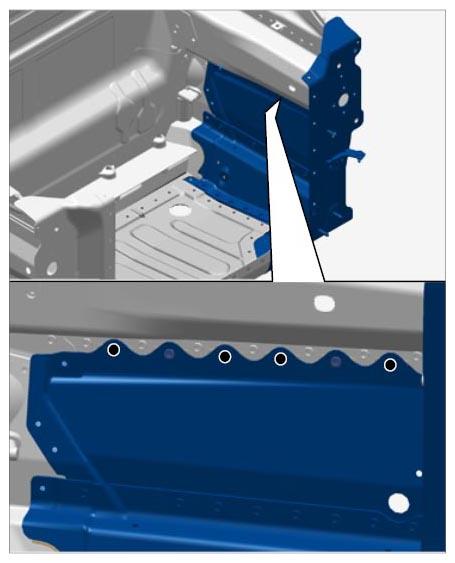

  Fig 6: Installing Luggage Compartment Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

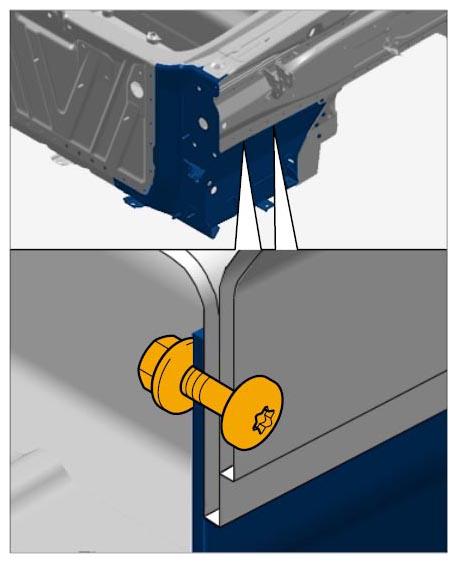

  Fig 7: Installing Luggage Compartment Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

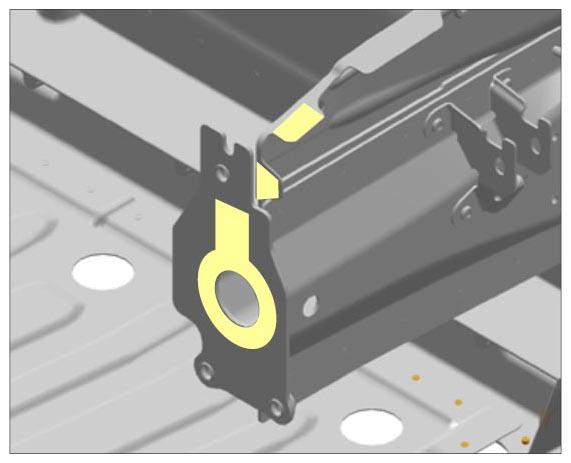

  Fig 8: Installing Luggage Compartment Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 3.4. Rivet in areas shown using → BLIND RIVET 999.190.229.01.

  Fig 9: Installing Luggage Compartment Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Make ground connections.
1. 4.1. Drill bores for ground connections. → Diameter: 8.2 mm

  Fig 10: Identifying Ground Connection Points
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Make ground connection using a screw and nut. → 5X00IN25 MAKING GROUND CONNECTIONS → COUNTERSUNK SCREW 999.073.549.01 → HEXAGON NUT 900.377.003.01 → Tightening torque: 15 Nm (11 ftlb.)

  Fig 11: Identifying Ground Connections
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 4.3. Carefully seal screw heads and nuts.
Install front closing panel. → 501055 REPLACING FRONT CLOSING PANEL
